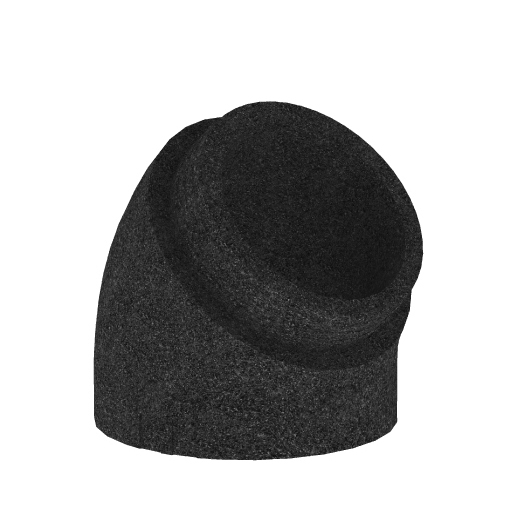

BUH WTW bocht 200 inw. 45gr dikw. EPP 40
Titel |
BUH WTW bocht 200 inw. 45gr dikw. EPP 40 |
Artikelnummer |
A3740936 |
Fabrikantnummer |
9747215 |
EAN code |
08712798525918 |
Merk | Burgerhout |
---|
Geïsoleerd | ja |
---|
Oppervlaktebescherming | Overig |
---|
Materiaal | Kunststof |
---|
| bocht 160 inw. 45gr dikw. EPP 40 | bocht 200 inw. 45gr dikw. EPP 40 | excentr.adapter 150 dikw. EPP 40 | excentr.adapter 160 dikw. EPP 40 | excentr.adapter 200 dikw. EPP 40 | pijp 160 inw. l=1000 dikw. EPP 4 | pijp 200 inw. l= 1000 dikw. EPP | verbindingsmof 160 inw .dikw. EP | verbindingsmof 200 inw .dikw. EP |
---|
Kleur | Materiaal eigen kleur | Overig | | | | | | | |
---|
Model | Gladde bocht | Gladde bocht | | | | | | | |
---|
Nom. diameter | 160 mm | 200 mm | | | | | | | |
---|
Bochthoek | 45 ° | 45 ° | | | | | | | |
---|
Plaatdikte | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm | 43 mm | 43 mm | 15 mm | 15 mm |
---|
Isolatiemateriaal | Geëxpandeerd polystyreen (EPS) | Geëxpandeerd polystyreen (EPS) | | | | | | | |
---|
Productiewijze | Naadloos | Naadloos | Naadloos | Naadloos | Naadloos | Overig | Overig | Naadloos | Naadloos |
---|
Verbinding aansluiting 1 | Buiseind | Buiseind | Mof | Mof | Mof | | | Insteekeind | Mof |
---|
Verbinding aansluiting 2 | Buiseind | Buiseind | Mof | Mof | Mof | | | Mof | Mof |
---|
Soort isolatiemateriaal | | | Geëxpandeerd polystyreen (EPS) | Geëxpandeerd polystyreen (EPS) | Geëxpandeerd polystyreen (EPS) | | | Geëxpandeerd polystyreen (EPS) | Geëxpandeerd polystyreen (EPS) |
---|
Nom. diameter aansluiting 1 | | | 150 mm | 160 mm | 180 mm | | | 160 mm | 200 mm |
---|
Nom. diameter aansluiting 2 | | | 180 mm | 190 mm | 210 mm | | | 246 mm | |
---|
Materiaalkwaliteit | | | | | | Overig | Overig | | |
---|
Lengte | | | | | | 1000 mm | 1000 mm | | |
---|
Isolatiedikte | | | | | | 43 mm | 43 mm | | |
---|
Werkende lengte | | | | | | 940 mm | 940 mm | | |
---|
Nom. kanaaldiameter | | | | | | 160 mm | 200 mm | | |
---|
Lengte aansluiting 1 | | | | | | | | 70 mm | |
---|
Lengte aansluiting 2 | | | | | | | | 70 mm | |
---|
Werkende lengte aansluiting 1 | | | | | | | | 68 mm | |
---|
Werkende lengte aansluiting 2 | | | | | | | | 68 mm | |
---|
