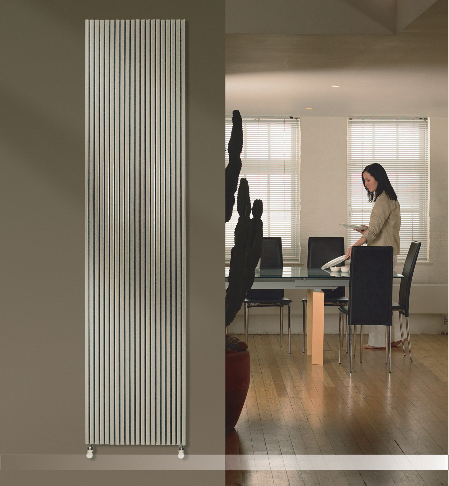

Designradiator Karin VX 1800x1400x50 3646W DRL
| Titel |
Designradiator Karin VX 1800x1400x50 3646W DRL |
| Artikelnummer |
AV366516 |
| Fabrikantnummer |
4402029 |
| EAN code |
08719577556323 |
| Merk | DRL |
|---|
| Kleur | Wit |
|---|
| RAL-nummer | 9010 |
|---|
| Materiaal | Staal |
|---|
| Diepte vanaf wand tot voorzijde | 90-90 mm |
|---|
| Standaard kleur | ja |
|---|
| | 1400x1050x50 2161W DRL | 1800x1400x50 3646W DRL | 1900x300x50 822W DRL | 2300x1450x50 4777W DRL | 2300x350x50 1153W DRL | 2500x1600x50 5719W DRL | Tandem 1000x1650x70 3234W DRL | Tandem 1000x950x70 1862W DRL |
|---|
| Hoogte | 1400 mm | 1800 mm | 1900 mm | 2300 mm | 2300 mm | 2500 mm | 1000 mm | 1000 mm |
|---|
| Diepte | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 70 mm | 70 mm |
|---|
| Lengte | 1050 mm | 1400 mm | 300 mm | 1450 mm | 350 mm | 1600 mm | 1650 mm | 950 mm |
|---|
| Waterinhoud | 15.876 l | 26.768 l | 6.036 l | 34.974 l | 8.442 l | 41.792 l | 28.842 l | 16.606 l |
|---|
| Warmteafgifte EN 442 20°C - 75/65 | 2161 W | 3646 W | 822 W | 4777 W | 1153 W | 5719 W | 3234 W | 1862 W |
|---|
