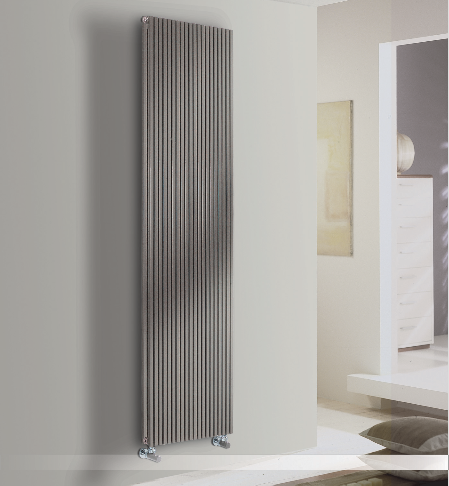

Designradiator Karin VX Tandem 2200x350x70 1470W DRL
| Titel |
Designradiator Karin VX Tandem 2200x350x70 1470W DRL |
| Artikelnummer |
AV313390 |
| Fabrikantnummer |
4404689 |
| EAN code |
08719577560054 |
| Merk | DRL |
|---|
| Kleur | Wit |
|---|
| RAL-nummer | 9010 |
|---|
| Materiaal | Staal |
|---|
| Diepte vanaf wand tot voorzijde | 90-90 mm |
|---|
| Standaard kleur | ja |
|---|
| | 1200x750x50 1337W DRL | 1600x1650x50 3842W DRL | 1900x550x50 1507W DRL | 2000x1050x50 3073W DRL | 2300x1200x50 3954W DRL | Tandem 1000x800x70 1568W DRL | Tandem 2200x350x70 1470W DRL | Tandem 2200x650x70 2730W DRL | Tandem 2500x200x70 1180W DRL | Tandem 2500x500x70 2596W DRL |
|---|
| Hoogte | 1200 mm | 1600 mm | 1900 mm | 2000 mm | 2300 mm | 1000 mm | 2200 mm | 2200 mm | 2500 mm | 2500 mm |
|---|
| Diepte | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
|---|
| Lengte | 750 mm | 1650 mm | 550 mm | 1050 mm | 1200 mm | 800 mm | 350 mm | 650 mm | 200 mm | 500 mm |
|---|
| Waterinhoud | 9.84 l | 28.248 l | 11.066 l | 22.176 l | 28.944 l | 13.984 l | 12.967 l | 24.081 l | 10.486 l | 23.069 l |
|---|
| Warmteafgifte EN 442 20°C - 75/65 | 1337 W | 3842 W | 1507 W | 3073 W | 3954 W | 1568 W | 1470 W | 2730 W | 1180 W | 2596 W |
|---|
