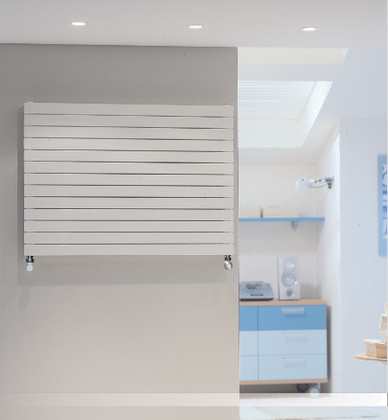

Designradiator Rosy 224x1400x48 horizontaal 392W DRL
| Titel |
Designradiator Rosy 224x1400x48 horizontaal 392W DRL |
| Artikelnummer |
AV346589 |
| Fabrikantnummer |
0DN6058 |
| EAN code |
08719577539425 |
| Merk | DRL |
|---|
| Kleur | Wit |
|---|
| RAL-nummer | 9010 |
|---|
| Materiaal | Staal |
|---|
| Standaard kleur | ja |
|---|
| Vermogen elektrisch verwarmingselement | - W |
|---|
| | 1344x600x48 horizontaal 871W DRL | 1600x1344x48 verticaal 2448W DRL | 1600x504x48 verticaal 918W DRL | 2000x1288x48 verticaal 2898W DRL | 2000x1624x48 verticaal 3654W DRL | 224x1400x48 horizontaal 392W DRL | 2500x1680x48 verticaal 4590W DRL | Tandem 1000x728x58 verticaal 1296W DRL | Tandem 1200x392x58 verticaal 819W DRL |
|---|
| Hoogte | 1344 mm | 1600 mm | 1600 mm | 2000 mm | 2000 mm | 224 mm | 2500 mm | 1000 mm | 1200 mm |
|---|
| Diepte | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 58 mm | 58 mm |
|---|
| Lengte | 600 mm | 1344 mm | 504 mm | 1288 mm | 1624 mm | 1400 mm | 1680 mm | 728 mm | 392 mm |
|---|
| Waterinhoud | 7.32 l | 15.216 l | 5.706 l | 17.618 l | 22.214 l | 2.272 l | 27.9 l | 10.01 l | 6.3 l |
|---|
| Warmteafgifte EN 442 20°C - 75/65 | 871 W | 2448 W | 918 W | 2898 W | 3654 W | 392 W | 4590 W | 1296.1 W | 819 W |
|---|
| Diepte vanaf wand tot voorzijde | 97-110 mm | 84-84 mm | 84-84 mm | 84-84 mm | 84-84 mm | 97-110 mm | 84-84 mm | 84-84 mm | 84-84 mm |
|---|
