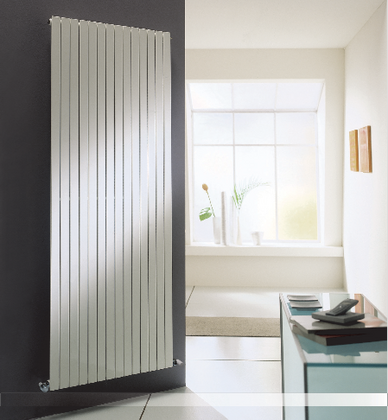

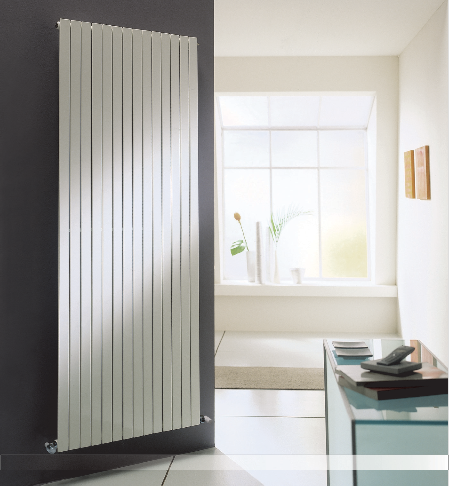

Designradiator Rosy 2500x952x48 verticaal 2601W DRL
| Titel |
Designradiator Rosy 2500x952x48 verticaal 2601W DRL |
| Artikelnummer |
AV305094 |
| Fabrikantnummer |
0DN7641 |
| EAN code |
08719577544771 |
| Merk | DRL |
|---|
| Kleur | Wit |
|---|
| RAL-nummer | 9010 |
|---|
| Materiaal | Staal |
|---|
| Standaard kleur | ja |
|---|
| Vermogen elektrisch verwarmingselement | - W |
|---|
| | 1000x1400x48 verticaal 1657W DRL | 1120x600x48 horizontaal 735W DRL | 1400x1680x48 verticaal 2718W DRL | 1400x560x48 verticaal 906W DRL | 1600x1512x48 verticaal 2754W DRL | 2500x952x48 verticaal 2601W DRL | 560x800x48 horizontaal 518W DRL | 616x800x48 horizontaal 565W DRL | Tandem 1000x896x58 verticaal 1595W DRL |
|---|
| Hoogte | 1000 mm | 1120 mm | 1400 mm | 1400 mm | 1600 mm | 2500 mm | 560 mm | 616 mm | 1000 mm |
|---|
| Diepte | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 58 mm |
|---|
| Lengte | 1400 mm | 600 mm | 1680 mm | 560 mm | 1512 mm | 952 mm | 800 mm | 800 mm | 896 mm |
|---|
| Waterinhoud | 10.925 l | 6.1 l | 17.04 l | 5.68 l | 17.118 l | 15.81 l | 3.71 l | 4.081 l | 12.32 l |
|---|
| Warmteafgifte EN 442 20°C - 75/65 | 1657.5 W | 735 W | 2718 W | 906 W | 2754 W | 2601 W | 518 W | 565 W | 1595.2 W |
|---|
| Diepte vanaf wand tot voorzijde | 84-84 mm | 97-110 mm | 84-84 mm | 84-84 mm | 84-84 mm | 84-84 mm | 97-110 mm | 97-110 mm | 84-84 mm |
|---|
