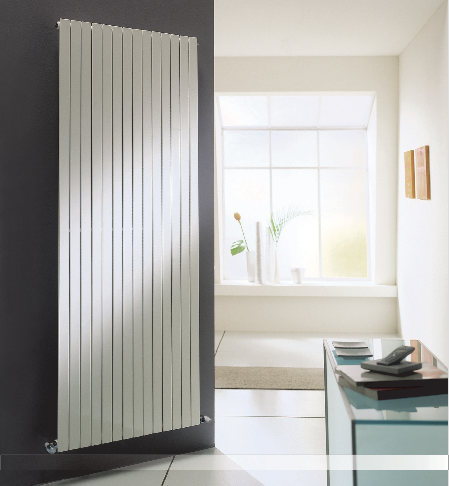

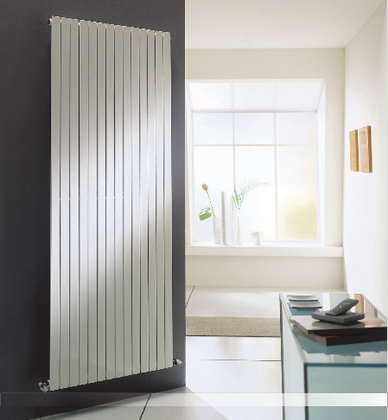

Designradiator Rosy 800x1008x48 verticaal 968W DRL
| Titel |
Designradiator Rosy 800x1008x48 verticaal 968W DRL |
| Artikelnummer |
AV266100 |
| Fabrikantnummer |
0DN6824 |
| EAN code |
08719577541886 |
| Merk | DRL |
|---|
| Kleur | Wit |
|---|
| RAL-nummer | 9010 |
|---|
| Materiaal | Staal |
|---|
| Standaard kleur | ja |
|---|
| Vermogen elektrisch verwarmingselement | - W |
|---|
| | 1568x2000x48 horizontaal 3352W DRL | 1624x800x48 horizontaal 1386W DRL | 2000x1176x48 verticaal 2646W DRL | 2500x672x48 verticaal 1836W DRL | 800x1008x48 verticaal 968W DRL | 952x1500x48 horizontaal 1581W DRL | Max laag model 940x1338x98 3357W DRL | Tandem 1600x728x58 verticaal 1937W DRL |
|---|
| Hoogte | 1568 mm | 1624 mm | 2000 mm | 2500 mm | 800 mm | 952 mm | 940 mm | 1600 mm |
|---|
| Diepte | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 98 mm | 58 mm |
|---|
| Lengte | 2000 mm | 800 mm | 1176 mm | 672 mm | 1008 mm | 1500 mm | 1338 mm | 728 mm |
|---|
| Waterinhoud | 21.448 l | 10.759 l | 16.086 l | 11.16 l | 6.678 l | 10.217 l | 22.776 l | 15.08 l |
|---|
| Warmteafgifte EN 442 20°C - 75/65 | 3352 W | 1386 W | 2646 W | 1836 W | 968.4 W | 1581 W | 3214 W | 1937 W |
|---|
| Diepte vanaf wand tot voorzijde | 97-110 mm | 97-110 mm | 84-84 mm | 84-84 mm | 84-84 mm | 97-110 mm | 98-98 mm | 84-84 mm |
|---|
