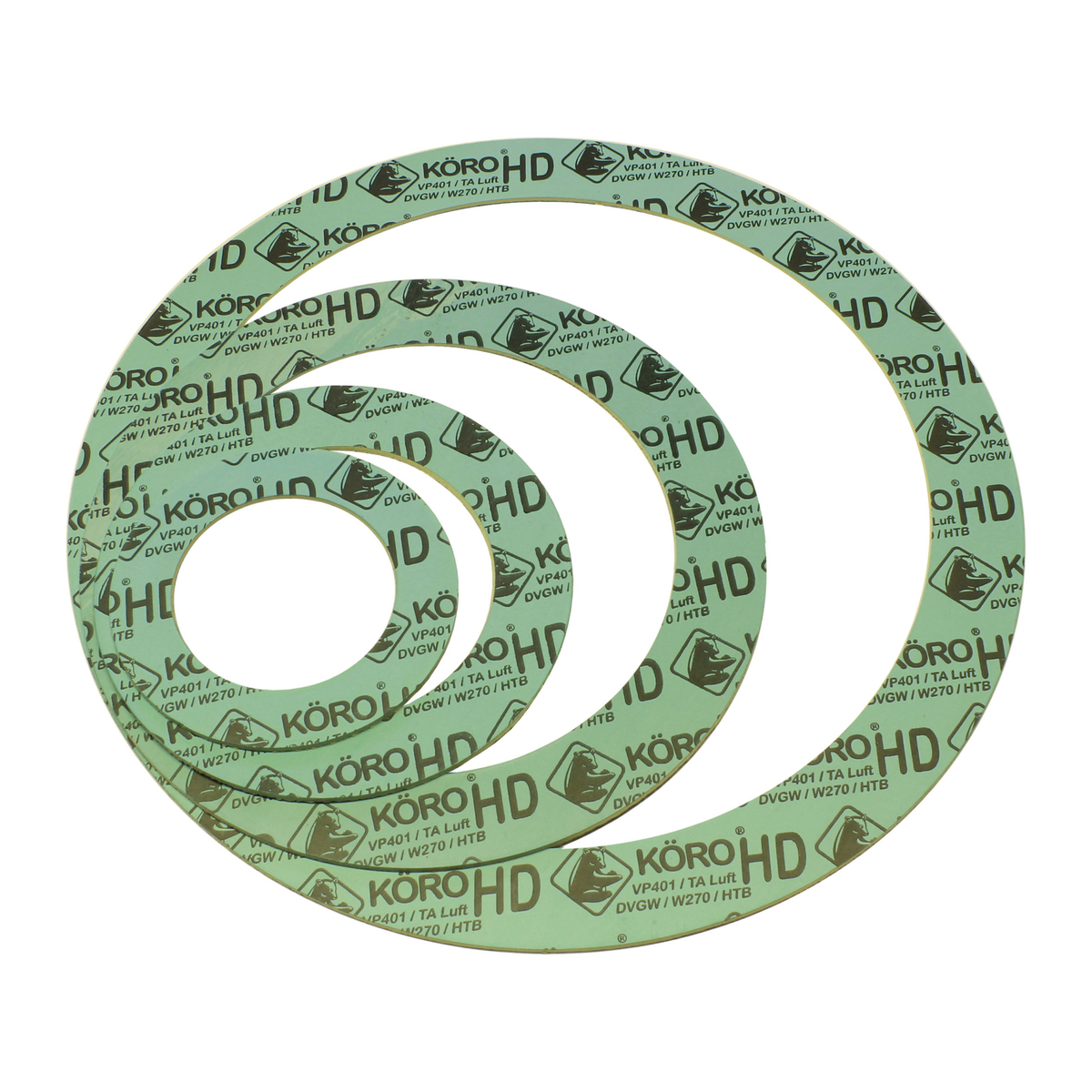

FLENS PAKKING NW150 207x151x2 HD
| Titel |
FLENS PAKKING NW150 207x151x2 HD |
| Artikelnummer |
A8600226 |
| Fabrikantnummer |
8600226 |
| EAN code |
08711962109169 |
| | DN125 141X182X3 | NW100 K162X114X2 | NW150 207x151x2 HD | NW20 54X27MM 10002823 | NW25 K 44X21X2 | NW32 K 64,5X36X2 | NW40 K 82X42X2 | NW50 K 92X49X2 | NW80 K 127X80X2 |
|---|
| Kleur | Zwart | | | | | | | | |
|---|
| Buitendiameter | 182 mm | | | | | | | | |
|---|
| Binnendiameter | 141 mm | | | | | | | | |
|---|
| Dikte | 3 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm |
|---|
| Materiaal | SBR (Styreen butadiëne rubber) | | | | | | | | |
|---|
| Uitwendige diameter | 182 mm | | | | | | | | |
|---|
| Materiaal inlage | Weefsel | | | | | | | | |
|---|
| Gastec QA | nee | | | | | | | | |
|---|
| KIWA-keur | nee | | | | | | | | |
|---|
| Aantal inlagen | 1 | | | | | | | | |
|---|
| KTW-keur | nee | | | | | | | | |
|---|
| FDA-keur | nee | | | | | | | | |
|---|
| DVGW-keur | nee | | | | | | | | |
|---|
| Inwendige diameter | 141 mm | | | | | | | | |
|---|
| Druktrap flens (PN) | 6-6 | 10-16 | 10-16 | 6-6 | 6-6 | 6-6 | 10-40 | 10-40 | 10-40 |
|---|
| Nom. diameter flens | DN 125 | DN 100 | DN 150 | DN 20 | DN 15 | DN 25 | DN 32 | DN 40 | DN 65 |
|---|
| Hardheid Shore | 65 | | | | | | | | |
|---|
| Ovale vorm | nee | | | | | | | | |
|---|
| Nevenbestanddeel | | Geen | Geen | Geen | Geen | Geen | Geen | Geen | Geen |
|---|
| Materiaal binder | | NBR (Nitril Butadieen Rubber) | NBR (Nitril Butadieen Rubber) | NBR (Nitril Butadieen Rubber) | NBR (Nitril Butadieen Rubber) | NBR (Nitril Butadieen Rubber) | NBR (Nitril Butadieen Rubber) | NBR (Nitril Butadieen Rubber) | NBR (Nitril Butadieen Rubber) |
|---|
| Met felsrand | | nee | nee | nee | nee | nee | nee | nee | nee |
|---|
