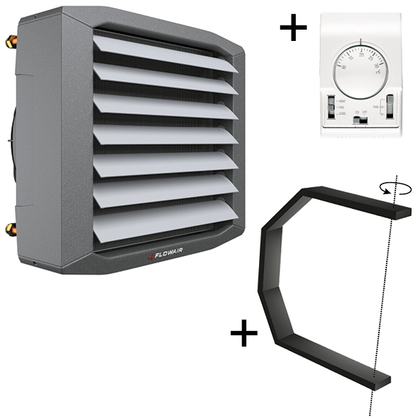

Flowair Basic Line Luchtverw. LEO XL2- AC fan+TS therm DRL
| Titel |
Flowair Basic Line Luchtverw. LEO XL2- AC fan+TS therm DRL |
| Artikelnummer |
AV452468 |
| Fabrikantnummer |
8183345 |
| EAN code |
08719577004237 |
| Merk | Flowair |
|---|
| Nom. stroom | 230 A |
|---|
| Materiaal warmtewisselaar | Aluminium/koper |
|---|
| Aansluitspanning | 1 x 230 V |
|---|
| Ventilatortype | Axiaal |
|---|
| Instelbare inductie in uitblaaslucht | nee |
|---|
| Verstelbare lamellen uitblaaszijde | ja |
|---|
| Vrij uitblazend | ja |
|---|
| | L1- AC fan+TS therm DRL | L2 - AC fan+TS therm DRL | L3- AC fan+TS therm DRL | S1-AC fan+TS therm DRL | S2-AC fan+TS therm DRL | S3-AC fan+TS therm DRL | XL2- AC fan+TS therm DRL | XL3- AC fan+TS therm DRL |
|---|
| Breedte | 550 mm | 650 mm | 650 mm | 550 mm | 550 mm | 650 mm | 680 mm | 680 mm |
|---|
| Hoogte | 480 mm | 580 mm | 580 mm | 480 mm | 480 mm | 580 mm | 830 mm | 830 mm |
|---|
| Diepte | 560 mm | 650 mm | 650 mm | 560 mm | 560 mm | 650 mm | 475 mm | 475 mm |
|---|
| Luchthoeveelheid | 4250-4250 m³/h | 3800-3800 m³/h | 3400-3400 m³/h | 2100-2100 m³/h | 2000-2000 m³/h | 4400-4400 m³/h | 5800-5800 m³/h | 5300-5300 m³/h |
|---|
| dT verwarmingslucht | 24-24 K | 21.5-21.5 K | 19-19 K | 14.5-14.5 K | 14-14 K | 26-26 K | 26-26 K | 23.5-23.5 K |
|---|
| Worp | 24-24 m | 21.5-21.5 m | 19-19 m | 14.5-14.5 m | 14-14 m | 26-26 m | 26-26 m | 23.5-23.5 m |
|---|
| Warmte afgifte | 32-32 kW | 50-50 kW | 65-65 kW | 10-10 kW | 20-20 kW | 25-25 kW | 94-94 kW | 121-121 kW |
|---|
| Geluiddrukniveau op 5 meter hoogte | 54-54 dB(A) | 54-54 dB(A) | 51-51 dB(A) | 45-45 dB(A) | 45-45 dB(A) | 51-51 dB(A) | 67-67 dB(A) | 67-67 dB(A) |
|---|
