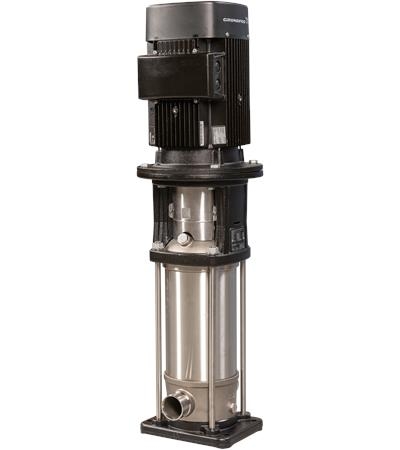

POMP CRN 20-17 3X400V 96500651

Maak uw keuze

Details

Titel	POMP CRN 20-17 3X400V 96500651
Artikelnummer	A8333144
Fabrikantnummer	8333144
EAN code	05700396206080

Fabrikant informatie

Merk	Grundfos
Model	Verticaal
Aantal fasen	3
Materiaalkwaliteit	Overig
Ondersteunt protocol voor PROFIBUS	nee
Ondersteunt protocol voor KNX	nee
Potentiaalvrij schakelcontact	nee
Elektrische aansluiting	Aansluitklemmen
Materiaal aansluiting	Roestvaststaal (RVS)
Explosieveilig	nee
Frequentie	50 Hz
Beschermingsgraad (IP)	IP55
Bluetooth-netwerk standaard	nee
Radiostandaard WLAN 802.11	nee
Met communicatie-interface RS-232	nee
Met communicatie-interface RS-485	nee
Ondersteunt protocol voor EtherNet/IP	nee
Ondersteunt protocol voor PROFINET IO	nee
Materiaal waaier / pompwiel	Roestvaststaal (RVS)
Normmotor	ja
Motor energie-efficiëntieklasse	IE3
Communicatie	Geen
Met droogloopbeveiliging	nee
Standaard radio 2G / 3G / 4G	nee
5G-netwerk standaard	nee
Interface signaal 0-10 V / 2-10 V	nee
Interface signaal 0-20 mA / 4-20 mA	nee
Interface signaal PT100 / PT1000 / PTC	nee
Interface pulsbreedtemodulatie (PWM)	nee
Interface pulsteller	nee
Ondersteunt protocol voor CAN / CANOpen	nee
Ondersteunt protocol voor Modbus TCP	nee
Ondersteunt protocol voor Modbus RTU	nee
Ondersteunt protocol voor BACnet MS / TP	nee
Ondersteunt protocol voor BACnet IP	nee
Ondersteunt protocol voor LON / LONWorks	nee
Ondersteunt protocol voor LIN Bus	nee
Max. mediumtemperatuur (continu)	90 °C
Zelfaanzuigend	nee
Min. mediumtemperatuur (continu)	-20 °C
Toerenregeling motor	Geen
Aansluitspanning	3 x 400 V
Beschermingsgraad (IP-waarde)	55
Materiaal behuizing	Roestvaststaal (RVS)
Materiaal pomphuis	Roestvaststaal (RVS)
Frequentie 60 Hz	nee
Isolatieklasse volgens IEC	F
Motor met verlengde as	nee
Met ovale tegenflenzen	nee
Kwaliteitsklasse pomphuis	RVS 316 (1.4408)
Mediumtemperatuur (continu)	-20-90 °C
Kwaliteitsklasse materiaal waaier	RVS 316 (1.4401)
Kwaliteitsklasse aansluiting	RVS 316 (1.4408)

	1-10 230/400V 96516428	1-10 230/400V 96516516	1-11 230/400V 96516429	1-11 230/400V 96516517	1-12 230/400V 96516430	1-12 230/400V 96516518	1-13 230/400V 96516431	1-13 230/400V 96516519	1-15 230/400V 96516432	1-15 230/400V 96516520	1-17 230/400V 96516433	1-17 230/400V 96516521	1-19 230/400V 96516434	1-19 230/400V 96516522	1-2 230/400V 96516420	1-2 230/400V 96516508	1-21 230/400V 96516435	1-21 230/400V 96516523	1-23 230/400V 96516436	1-23 230/400V 96516524	1-25 230/400V 96516437	1-25 230/400V 96516526	1-27 230/400V 96516438	1-27 230/400V 96516527	1-3 230/400V 96516421	1-3 230/400V 96516509	1-30 230/400V 96516439	1-30 230/400V 96516528	1-33 230/400V 96513956	1-33 3X400V 96513454	1-36 230/400V 96513957	1-36 3X400V 96513455	1-4 230/400V 96516422	1-4 230/400V 96516510	1-5 230/400V 96516423	1-5 230/400V 96516511	1-6 230/400V 96516424	1-6 230/400V 96516512	1-7 230/400V 96516425	1-7 230/400V 96516513	1-8 230/400V 96516426	1-8 230/400V 96516514	1-9 230/400V 96516427	1-9 230/400V 96516515	10-1 230/400V 96501165	10-1 230/400V 96501181	10-10 3X400V 96501382	10-10 3X400V 96501395	10-12 3X400V 96501383	10-12 3X400V 96501396	10-14 3X400V 96501384	10-14 3X400V 96501397	10-16 3X400V 96501385	10-16 3X400V 96501398	10-18 3X400V 96501386	10-18 3X400V 96501399	10-2 230/400V 96501166	10-2 230/400V 96501182	10-20 3X400V 96501387	10-20 3X400V 96501400	10-22 3X400V 96501388	10-22 3X400V 96501401	10-3 230/400V 96501167	10-3 230/400V 96501183	10-4 230/400V 96501168	10-4 230/400V 96501184	10-5 3X400V 96501377	10-5 3X400V 96501390	10-6 3X400V 96501391	10-7 3X400V 96501379	10-7 3X400V 96501392	10-8 3X400V 96501380	10-8 3X400V 96501393	10-9 3X400V 96501381	10-9 3X400V 96501394	15-1 230/400V 96501854	15-1 230/400V 96501867	15-10 3X400V 96502045	15-10 3X400V 96502057	15-12 3X400V 96502046	15-12 3X400V 96502058	15-14 3X400V 96502047	15-14 3X400V 96502059	15-17 3X400V 96502048	15-17 3X400V 96502060	15-2 3X400V 96502037	15-2 3X400V 96502049	15-3 3X400V 96502038	15-3 3X400V 96502050	15-4 3X400V 96502039	15-4 3X400V 96502051	15-5 3X400V 96502040	15-5 3X400V 96502052	15-6 3X400V 96502041	15-6 3X400V 96502053	15-7 3X400V 96502042	15-7 3X400V 96502054	15-8 3X400V 96502043	15-8 3X400V 96502055	15-9 3X400V 96502044	15-9 3X400V 96502056	1S-10 COMBI-FLENS 96515940	1S-10 PJE KOPPELING 96516081	1S-11 COMBI-FLENS 96515942	1S-11 PJE KOPPELING 96516082	1S-12 COMBI-FLENS 96515943	1S-12 PJE KOPPELING 96516084	1S-13 COMBI-FLENS 96515944	1S-13 PJE KOPPELING 96516085	1S-15 COMBI-FLENS 96515945	1S-15 PJE KOPPELING 96516087	1S-17 COMBI-FLENS 96515946	1S-17 PJE KOPPELING 96516088	1S-19 COMBI-FLENS 96515948	1S-19 PJE KOPPELING 96516090	1S-2 COMBI-FLENS 96515929	1S-2 PJE KOPPELING 96516069	1S-21 COMBI-FLENS 96515950	1S-21 PJE KOPPELING 96516092	1S-23 COMBI-FLENS 96515951	1S-23 PJE KOPPELING 96516094	1S-25 COMBI-FLENS 96515953	1S-25 PJE KOPPELING 96516096	1S-27 COMBI-FLENS 96515955	1S-27 PJE KOPPELING 96516097	1S-3 COMBI-FLENS 96515930	1S-3 PJE KOPPELING 96516070	1S-30 COMBI-FLENS 96515956	1S-30 PJE KOPPELING 96516099	1S-33 COMBI-FLENS 96515958	1S-33 PJE KOPPELING 96516101	1S-36 COMBI-FLENS 96515959	1S-36 PJE KOPPELING 96516102	1S-4 COMBI-FLENS 96515931	1S-4 PJE KOPPELING 96516072	1S-5 COMBI-FLENS 96515933	1S-5 PJE KOPPELING 96516073	1S-6 COMBI-FLENS 96515935	1S-6 PJE KOPPELING 96516074	1S-7 COMBI-FLENS 96515936	1S-7 PJE KOPPELING 96516076	1S-8 COMBI-FLENS 96515938	1S-8 PJE KOPPELING 96516078	1S-9 COMBI-FLENS 96515939	1S-9 PJE KOPPELING 96516080	20-1 230/400V 96500472	20-1 230/400V 96500484	20-10 3X400V 96500648	20-10 3X400V 96500659	20-12 3X400V 96500649	20-12 3X400V 96500660	20-14 3X400V 96500650	20-14 3X400V 96500661	20-17 3X400V 96500651	20-17 3X400V 96500662	20-2 3X400V 96500641	20-2 3X400V 96500652	20-3 3X400V 96500642	20-3 3X400V 96500653	20-4 3X400V 96500643	20-4 3X400V 96500654	20-5 3X400V 96500644	20-5 3X400V 96500655	20-6 3X400V 96500645	20-6 3X400V 96500656	20-7 3X400V 96500646	20-7 3X400V 96500657	20-8 3X400V 96500647	20-8 3X400V 96500658	3-10 230/400V 96516857	3-10 230/400V 96516923	3-11 230/400V 96495064	3-11 230/400V 96516858	3-12 230/400V 96516859	3-12 230/400V 96516924	3-13 230/400V 96516860	3-13 230/400V 96516925	3-15 230/400V 96516861	3-15 230/400V 96516926	3-17 230/400V 96516862	3-17 230/400V 96516927	3-19 230/400V 96516863	3-19 230/400V 96516928	3-2 230/400V 96516849	3-2 230/400V 96516916	3-21 3X400V 96513464	3-21 3X400V 96514130	3-23 3X400V 96513465	3-23 3X400V 96514131	3-25 3X400V 96513466	3-25 3X400V 96514132	3-27 3X400V 96513467	3-27 3X400V 96514133	3-29 3X400V 96513468	3-29 3X400V 96514134	3-3 230/400V 96516850	3-3 230/400V 96516917	3-31 3X400V 96513469	3-31 3X400V 96514135	3-33 3X400V 96513480	3-33 3X400V 96514136	3-36 3X400V 96482181	3-36 3X400V 96513481	3-4 230/400V 96516851	3-4 230/400V 96516918	3-5 230/400V 96516852	3-5 230/400V 96516919	3-6 230/400V 96490318	3-6 230/400V 96516853	3-7 230/400V 96516854	3-7 230/400V 96516920	3-8 230/400V 96516855	3-8 230/400V 96516921	3-9 230/400V 96516856	3-9 230/400V 96516922	32-1 3X400V 96122379	32-1-1 230/400V 96122322	32-10 3X400V 96122397	32-10-2 3X400V 96122396	32-11 3X400V 96122399	32-11-2 3X400V 96122398	32-12 3X400V 96122401	32-12-2 3X400V 96122400	32-13 3X400V 96122403	32-13-2 3X400V 96122402	32-14 3X400V 96122405	32-14-2 3X400V 96122404	32-2 3X400V 96122381	32-2-2 3X400V 96122380	32-3 3X400V 96122383	32-3-2 3X400V 96122382	32-4 3X400V 96122385	32-4-2 3X400V 96122384	32-5 3X400V 96122387	32-5-2 3X400V 96122386	32-6 3X400V 96122389	32-6-2 3X400V 96122388	32-7 3X400V 96122391	32-7-2 3X400V 96122390	32-8 3X400V 96122393	32-8-2 3X400V 96122392	32-9 3X400V 96122395	32-9-2 3X400V 96122394	45-1 3X400V 96123142	45-1-1 3X400V 96123141	45-10 3X400V 96123160	45-10-2 3X400V 96123159	45-11 3X400V 96123162	45-11-2 3X400V 96123161	45-12 3X400V 96123164	45-12-2 3X400V 96123163	45-13 3X400V 96123165	45-2 3X400V 96123144	45-2-2 3X400V 96123143	45-3 3X400V 96123146	45-3-2 3X400V 96123145	45-4 3X400V 96123148	45-4-2 3X400V 96123147	45-5 3X400V 96123150	45-5-2 3X400V 96123149	45-6 3X400V 96123152	45-6-2 3X400V 96123151	45-7 3X400V 96123154	45-7-2 3X400V 96123153	45-8 3X400V 96123156	45-8-2 3X400V 96123155	45-9 3X400V 96123158	45-9-2 3X400V 96123157	5-10 230/400V 96517210	5-10 230/400V 96517268	5-11 3X400V 96513496	5-11 3X400V 96514161	5-12 3X400V 96513497	5-12 3X400V 96514162	5-13 3X400V 96513498	5-13 3X400V 96514163	5-14 3X400V 96482654	5-14 3X400V 96513499	5-15 3X400V 96513500	5-15 3X400V 96514164	5-16 3X400V	5-16 3X400V 96514165	5-18 3X400V 96513502	5-18 3X400V 96514166	5-2 230/400V 96486448	5-2 230/400V 96517261	5-20 3X400V 96513503	5-20 3X400V 96514167	5-22 3X400V 96513504	5-22 3X400V 96514168	5-24 3X400V 96513505	5-24 3X400V 96514169	5-26 3X400V 96513506	5-26 3X400V 96514170	5-29 3X400V 96513507	5-29 3X400V 96514171	5-3 230/400V 96517204	5-3 230/400V 96517262	5-32 3X400V 96513508	5-32 3X400V 96514172	5-36 3X400V 96513509	5-36 3X400V 96514173	5-4 230/400V 96511913	5-4 230/400V 96517205	5-5 230/400V 96517206	5-5 230/400V 96517263	5-6 230/400V 96517207	5-6 230/400V 96517264	5-7 230/400V 96496290	5-7 230/400V 96517265	5-8 230/400V 96517208	5-8 230/400V 96517266	5-9 230/400V 96517209	5-9 230/400V 96517267
Nom. stroom	1.44 A	1.44 A	1.44 A	1.44 A	1.9 A	1.9 A	1.9 A	1.9 A	1.9 A	1.9 A	2.5 A	2.5 A	2.5 A	2.5 A	1 A	1 A	2.5 A	2.5 A	2.5 A	2.5 A	3.3 A	3.3 A	3.3 A	3.3 A	1 A	1 A	3.3 A	3.3 A	4.65 A	4.65 A	4.65 A	4.65 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1.44 A	1.44 A	1.44 A	1.44 A	1 A	1 A	7.9 A	7.9 A	7.9 A	7.9 A	11 A	11 A	11 A	11 A	14.17 A	14.17 A	1.9 A	1.9 A	14.17 A	14.17 A	14.17 A	14.17 A	2.5 A	2.5 A	3.3 A	3.3 A	4.65 A	4.65 A	4.65 A	6.3 A	6.3 A	6.3 A	6.3 A	6.3 A	6.3 A	2.5 A	2.5 A	20.23 A	20.23 A	20.23 A	20.23 A	20.23 A	20.23 A	26.86 A	26.86 A	4.65 A	4.65 A	6.3 A	6.3 A	7.9 A	7.9 A	7.9 A	7.9 A	11 A	11 A	11 A	11 A	14.17 A	14.17 A	14.17 A	14.17 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1.44 A	1.44 A	1.44 A	1.44 A	1.44 A	1.44 A	1 A	1 A	1.9 A	1.9 A	1.9 A	1.9 A	1.9 A	1.9 A	2.5 A	2.5 A	1 A	1 A	2.5 A	2.5 A	2.5 A	2.5 A	2.5 A	2.5 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	2.5 A	2.5 A	20.23 A	20.23 A	26.86 A	26.86 A	26.86 A	26.86 A	33.36 A	33.36 A	4.65 A	4.65 A	7.9 A	7.9 A	11 A	11 A	11 A	11 A	14.17 A	14.17 A	14.17 A	14.17 A	20.23 A	20.23 A	1.9 A	1.9 A	2.5 A	2.5 A	2.5 A	2.5 A	2.5 A	2.5 A	2.5 A	2.5 A	3.3 A	3.3 A	3.3 A	3.3 A	1 A	1 A	4.65 A	4.65 A	4.65 A	4.65 A	4.65 A	4.65 A	4.65 A	4.65 A	4.65 A	4.65 A	1 A	1 A	6.3 A	6.3 A	6.3 A	6.3 A	6.3 A	6.3 A	1 A	1 A	1 A	1 A	1.44 A	1.44 A	1.44 A	1.44 A	1.9 A	1.9 A	1.9 A	1.9 A	4.65 A	3.3 A	33.36 A	33.36 A	39.5 A	39.5 A	39.5 A	39.5 A	53 A	53 A	53 A	53 A	7.9 A	6.3 A	11 A	11 A	14.17 A	14.17 A	20.23 A	20.23 A	20.23 A	20.23 A	26.86 A	26.86 A	26.86 A	26.86 A	33.36 A	33.36 A	7.9 A	6.3 A	65 A	65 A	78 A	78 A	78 A	78 A	78 A	14.17 A	11 A	20.23 A	20.23 A	26.86 A	26.86 A	33.36 A	33.36 A	39.5 A	39.5 A	53 A	53 A	53 A	53 A	65 A	53 A	3.3 A	3.3 A	4.65 A	4.65 A	4.65 A	4.65 A	4.65 A	4.65 A	4.65 A	4.65 A	4.65 A	4.65 A	4.65 A	4.65 A	6.3 A	6.3 A	1 A	1 A	6.3 A	6.3 A	7.9 A	7.9 A	7.9 A	7.9 A	7.9 A	7.9 A	7.9 A	7.9 A	1.44 A	1.44 A	11 A	11 A	11 A	11 A	1.44 A	1.44 A	1.9 A	1.9 A	2.5 A	2.5 A	2.5 A	2.5 A	2.5 A	2.5 A	3.3 A	3.3 A
Gewicht	23.093 kg	18.933 kg	23.388 kg	19.228 kg	27.363 kg	23.203 kg	27.779 kg	23.619 kg	28.548 kg	24.388 kg	31.438 kg	27.278 kg	32.228 kg	28.068 kg	20.567 kg	16.407 kg	33.018 kg	28.858 kg	33.808 kg	29.648 kg	40.466 kg	36.306 kg	41.356 kg	37.196 kg	20.767 kg	16.607 kg	42.541 kg	38.381 kg	47.528 kg	43.368 kg	48.714 kg	44.554 kg	21.162 kg	17.002 kg	21.557 kg	17.397 kg	21.958 kg	17.798 kg	22.447 kg	18.287 kg	22.302 kg	18.142 kg	22.698 kg	18.538 kg	29 kg	32 kg	69 kg	73 kg	71 kg	75 kg	90 kg	94 kg	92 kg	96 kg	104 kg	108 kg	31 kg	35 kg	106 kg	110 kg	108 kg	112 kg	34 kg	38 kg	42 kg	45 kg	47 kg	50 kg	51 kg	54 kg	58 kg	55 kg	59 kg	56 kg	60 kg	34 kg	39 kg	142 kg	147 kg	145 kg	150 kg	149 kg	153 kg	165 kg	170 kg	45 kg	50 kg	52 kg	56 kg	65 kg	70 kg	67 kg	71 kg	85 kg	89 kg	86 kg	91 kg	98 kg	103 kg	100 kg	104 kg	23.533 kg	19.373 kg	23.828 kg	19.668 kg	24.223 kg	20.063 kg	24.739 kg	20.579 kg	24.968 kg	20.808 kg	25.758 kg	21.598 kg	26.548 kg	22.388 kg	20.467 kg	16.307 kg	30.818 kg	26.658 kg	31.608 kg	27.448 kg	32.398 kg	28.238 kg	35.188 kg	31.028 kg	20.767 kg	16.607 kg	36.373 kg	32.213 kg	37.558 kg	33.398 kg	38.744 kg	34.584 kg	21.162 kg	17.002 kg	21.557 kg	17.397 kg	21.958 kg	17.798 kg	22.347 kg	18.187 kg	22.742 kg	18.582 kg	23.138 kg	18.978 kg	34 kg	39 kg	142 kg	147 kg	157 kg	162 kg	161 kg	165 kg	178 kg	183 kg	45 kg	50 kg	63 kg	68 kg	82 kg	86 kg	83 kg	88 kg	94 kg	99 kg	96 kg	101 kg	138 kg	143 kg	26.573 kg	22.413 kg	24.808 kg	28.968 kg	29.363 kg	25.203 kg	29.779 kg	25.619 kg	30.648 kg	26.488 kg	37.306 kg	33.146 kg	38.096 kg	33.936 kg	20.567 kg	16.407 kg	38.628 kg	42.788 kg	39.318 kg	43.478 kg	40.208 kg	44.368 kg	40.998 kg	45.158 kg	41.888 kg	46.048 kg	20.767 kg	16.607 kg	48.13 kg	52.29 kg	48.798 kg	52.958 kg	54.244 kg	50.084 kg	21.162 kg	17.002 kg	21.557 kg	17.397 kg	17.358 kg	21.518 kg	21.907 kg	17.747 kg	25.782 kg	21.622 kg	26.178 kg	22.018 kg	69.07 kg	65.268 kg	203.5 kg	203.5 kg	222 kg	222 kg	225.4 kg	225.4 kg	331.1 kg	331.1 kg	334.5 kg	334.5 kg	88.7 kg	77 kg	99.2 kg	99.2 kg	112 kg	112 kg	160.2 kg	160.2 kg	163.3 kg	163.3 kg	178.2 kg	178.2 kg	184 kg	184 kg	200.2 kg	200.2 kg	93.5 kg	81.8 kg	361.7 kg	361.7 kg	455.4 kg	455.4 kg	459.7 kg	459.7 kg	463.9 kg	114.4 kg	104.6 kg	163.5 kg	163.5 kg	179 kg	179 kg	195.4 kg	195.4 kg	217.2 kg	217.2 kg	323.8 kg	323.8 kg	328.1 kg	328.1 kg	357.5 kg	332.5 kg	36.116 kg	31.956 kg	36.3 kg	40.46 kg	36.964 kg	41.124 kg	37.485 kg	41.645 kg	42.288 kg	38.128 kg	38.671 kg	42.831 kg	39.213 kg	43.373 kg	45.828 kg	49.988 kg	20.667 kg	16.507 kg	47.013 kg	51.173 kg	59.798 kg	63.958 kg	60.984 kg	65.144 kg	62.169 kg	66.329 kg	63.896 kg	68.056 kg	20.77 kg	16.61 kg	75.614 kg	79.774 kg	77.878 kg	82.038 kg	17.158 kg	21.318 kg	25.335 kg	21.175 kg	27.978 kg	23.818 kg	28.52 kg	24.36 kg	29.063 kg	24.903 kg	35.573 kg	31.413 kg
Aansluiting	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Overig	Overig	Flens	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Overig	Overig	Flens	Overig	Flens	Flens	Overig	Flens	Overig	Flens	Overig	Overig	Flens	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Overig	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Overig	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Overig	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Overig	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig
Max. opvoerhoogte	62 m	62 m	67.9 m	67.9 m	74.7 m	74.7 m	80.7 m	80.7 m	92.6 m	92.6 m	105.4 m	105.4 m	117.4 m	117.4 m	12.1 m	12.1 m	129.2 m	129.2 m	141 m	141 m	155.9 m	155.9 m	168 m	168 m	19.2 m	19.2 m	186 m	186 m	206.2 m	206.2 m	224.5 m	224.5 m	25.4 m	25.4 m	31.6 m	31.6 m	37.6 m	37.6 m	43.7 m	43.7 m	50 m	50 m	56 m	56 m	9.9 m	9.9 m	102 m	102 m	122 m	122 m	143 m	143 m	163 m	163 m	185 m	185 m	20.2 m	20.2 m	205 m	205 m	225 m	225 m	30.3 m	30.3 m	40.8 m	40.8 m	51.1 m	51.1 m	61.2 m	71.7 m	71.7 m	81.7 m	81.7 m	91.8 m	91.8 m	13.5 m	13.5 m	141 m	141 m	169 m	169 m	197 m	197 m	239 m	239 m	28.7 m	28.7 m	42.7 m	42.7 m	56.8 m	56.8 m	70.6 m	70.6 m	84.7 m	84.7 m	98.5 m	98.5 m	113 m	113 m	127 m	127 m	58.9 m	58.9 m	64.5 m	64.5 m	70.1 m	70.1 m	75.8 m	75.8 m	87.9 m	87.9 m	99.1 m	99.1 m	110.1 m	110.1 m	12.3 m	12.3 m	123.2 m	123.2 m	134.4 m	134.4 m	145.5 m	145.5 m	158.8 m	158.8 m	18.2 m	18.2 m	175.6 m	175.6 m	192.3 m	192.3 m	208.8 m	208.8 m	24.1 m	24.1 m	30.3 m	30.3 m	35.9 m	35.9 m	41.7 m	41.7 m	47.5 m	47.5 m	53.2 m	53.2 m	14 m	14 m	148 m	148 m	178 m	178 m	207 m	207 m	252 m	252 m	28.9 m	28.9 m	43.9 m	43.9 m	58.8 m	58.8 m	73.4 m	73.4 m	88.4 m	88.4 m	103 m	103 m	118 m	118 m	65.6 m	65.6 m	72.6 m	72.6 m	79.1 m	79.1 m	85.5 m	85.5 m	98.2 m	98.2 m	112.8 m	112.8 m	125.8 m	125.8 m	13.5 m	13.5 m	139.9 m	139.9 m	153 m	153 m	166 m	166 m	179 m	179 m	192 m	192 m	19.9 m	19.9 m	206.6 m	206.6 m	219.7 m	219.7 m	239.3 m	239.3 m	26.5 m	26.5 m	32.3 m	32.3 m	39.5 m	39.5 m	45.9 m	45.9 m	52.8 m	52.8 m	59.2 m	59.2 m	19.7 m	16 m	194.6 m	187 m	214.6 m	206.9 m	232.5 m	226.1 m	254.8 m	247.1 m	274.7 m	266.4 m	39.5 m	31.6 m	58.5 m	51.1 m	77.8 m	70.3 m	97.8 m	90.2 m	116.8 m	109.2 m	136.6 m	128.9 m	155.5 m	148 m	175.5 m	168 m	26.6 m	21.4 m	255.2 m	245.1 m	280.9 m	270.5 m	306.2 m	295.8 m	321 m	51.7 m	41.4 m	77.1 m	67.2 m	102.4 m	92.4 m	127.8 m	117.8 m	153.2 m	143.2 m	179.4 m	169.3 m	204.6 m	194.4 m	230.2 m	219.5 m	69.7 m	69.7 m	76 m	76 m	81.7 m	81.7 m	88.4 m	88.4 m	95.1 m	95.1 m	101.8 m	101.8 m	108.4 m	108.4 m	122.7 m	122.7 m	14.3 m	14.3 m	136.1 m	136.1 m	150.4 m	150.4 m	163.9 m	163.9 m	177.4 m	177.4 m	197.5 m	197.5 m	22 m	22 m	218.8 m	218.8 m	248.4 m	248.4 m	28.3 m	28.3 m	34.5 m	34.5 m	42.4 m	42.4 m	49 m	49 m	56.5 m	56.5 m	63.9 m	63.9 m
Motorvermogen	0.55 kW	0.55 kW	0.55 kW	0.55 kW	0.75 kW	0.75 kW	0.75 kW	0.75 kW	0.75 kW	0.75 kW	1.1 kW	1.1 kW	1.1 kW	1.1 kW	0.37 kW	0.37 kW	1.1 kW	1.1 kW	1.1 kW	1.1 kW	1.5 kW	1.5 kW	1.5 kW	1.5 kW	0.37 kW	0.37 kW	1.5 kW	1.5 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.55 kW	0.55 kW	0.55 kW	0.55 kW	0.37 kW	0.37 kW	4 kW	4 kW	4 kW	4 kW	5.5 kW	5.5 kW	5.5 kW	5.5 kW	7.5 kW	7.5 kW	0.75 kW	0.75 kW	7.5 kW	7.5 kW	7.5 kW	7.5 kW	1.1 kW	1.1 kW	1.5 kW	1.5 kW	2.2 kW	2.2 kW	2.2 kW	3 kW	3 kW	3 kW	3 kW	3 kW	3 kW	1.1 kW	1.1 kW	11 kW	11 kW	11 kW	11 kW	11 kW	11 kW	15 kW	15 kW	2.2 kW	2.2 kW	3 kW	3 kW	4 kW	4 kW	4 kW	4 kW	5.5 kW	5.5 kW	5.5 kW	5.5 kW	7.5 kW	7.5 kW	7.5 kW	7.5 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.55 kW	0.55 kW	0.55 kW	0.55 kW	0.55 kW	0.55 kW	0.37 kW	0.37 kW	0.75 kW	0.75 kW	0.75 kW	0.75 kW	0.75 kW	0.75 kW	1.1 kW	1.1 kW	0.37 kW	0.37 kW	1.1 kW	1.1 kW	1.1 kW	1.1 kW	1.1 kW	1.1 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	1.1 kW	1.1 kW	11 kW	11 kW	15 kW	15 kW	15 kW	15 kW	18.5 kW	18.5 kW	2.2 kW	2.2 kW	4 kW	4 kW	5.5 kW	5.5 kW	5.5 kW	5.5 kW	7.5 kW	7.5 kW	7.5 kW	7.5 kW	11 kW	11 kW	0.75 kW	0.75 kW	1.1 kW	1.1 kW	1.1 kW	1.1 kW	1.1 kW	1.1 kW	1.1 kW	1.1 kW	1.5 kW	1.5 kW	1.5 kW	1.5 kW	0.37 kW	0.37 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	0.37 kW	0.37 kW	3 kW	3 kW	3 kW	3 kW	3 kW	3 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.55 kW	0.55 kW	0.55 kW	0.55 kW	0.75 kW	0.75 kW	0.75 kW	0.75 kW	2.2 kW	1.5 kW	18.5 kW	18.5 kW	22 kW	22 kW	22 kW	22 kW	30 kW	30 kW	30 kW	30 kW	4 kW	3 kW	5.5 kW	5.5 kW	7.5 kW	7.5 kW	11 kW	11 kW	11 kW	11 kW	15 kW	15 kW	15 kW	15 kW	18.5 kW	18.5 kW	4 kW	3 kW	37 kW	37 kW	45 kW	45 kW	45 kW	45 kW	45 kW	7.5 kW	5.5 kW	11 kW	11 kW	15 kW	15 kW	18.5 kW	18.5 kW	22 kW	22 kW	30 kW	30 kW	30 kW	30 kW	37 kW	30 kW	1.5 kW	1.5 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	3 kW	3 kW	0.37 kW	0.37 kW	3 kW	3 kW	4 kW	4 kW	4 kW	4 kW	4 kW	4 kW	4 kW	4 kW	0.55 kW	0.55 kW	5.5 kW	5.5 kW	5.5 kW	5.5 kW	0.55 kW	0.55 kW	0.75 kW	0.75 kW	1.1 kW	1.1 kW	1.1 kW	1.1 kW	1.1 kW	1.1 kW	1.5 kW	1.5 kW
Flensvorm	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Rond	Overig	Overig	Rond	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Rond	Overig	Overig	Rond	Overig	Rond	Rond	Overig	Rond	Overig	Rond	Overig	Overig	Rond	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Rond	Overig	Overig	Rond	Overig	Rond	Overig	Rond	Rond	Overig	Overig	Rond	Overig	Rond	Overig	Rond	Rond	Overig	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Rond	Overig	Overig	Rond	Overig	Rond	Overig	Rond	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig	Rond	Overig
Toerental	2856 1/min	2856 1/min	2856 1/min	2856 1/min	2864 1/min	2864 1/min	2864 1/min	2864 1/min	2864 1/min	2864 1/min	2853 1/min	2853 1/min	2853 1/min	2853 1/min	2873 1/min	2873 1/min	2853 1/min	2853 1/min	2853 1/min	2853 1/min	2896 1/min	2896 1/min	2896 1/min	2896 1/min	2873 1/min	2873 1/min	2896 1/min	2896 1/min	2899 1/min	2899 1/min	2899 1/min	2899 1/min	2873 1/min	2873 1/min	2873 1/min	2873 1/min	2873 1/min	2873 1/min	2873 1/min	2873 1/min	2856 1/min	2856 1/min	2856 1/min	2856 1/min	2873 1/min	2873 1/min	2917 1/min	2917 1/min	2917 1/min	2917 1/min	2919 1/min	2919 1/min	2919 1/min	2919 1/min	2919 1/min	2919 1/min	2864 1/min	2864 1/min	2919 1/min	2919 1/min	2919 1/min	2919 1/min	2853 1/min	2853 1/min	2896 1/min	2896 1/min	2899 1/min	2899 1/min	2899 1/min	2902 1/min	2902 1/min	2902 1/min	2902 1/min	2902 1/min	2902 1/min	2853 1/min	2853 1/min	2924 1/min	2924 1/min	2924 1/min	2924 1/min	2924 1/min	2924 1/min	2923 1/min	2923 1/min	2899 1/min	2899 1/min	2902 1/min	2902 1/min	2917 1/min	2917 1/min	2917 1/min	2917 1/min	2919 1/min	2919 1/min	2919 1/min	2919 1/min	2919 1/min	2919 1/min	2919 1/min	2919 1/min	2873 1/min	2873 1/min	2873 1/min	2873 1/min	2873 1/min	2873 1/min	2873 1/min	2873 1/min	2856 1/min	2856 1/min	2856 1/min	2856 1/min	2856 1/min	2856 1/min	2873 1/min	2873 1/min	2864 1/min	2864 1/min	2864 1/min	2864 1/min	2864 1/min	2864 1/min	2853 1/min	2853 1/min	2873 1/min	2873 1/min	2853 1/min	2853 1/min	2853 1/min	2853 1/min	2853 1/min	2853 1/min	2873 1/min	2873 1/min	2873 1/min	2873 1/min	2873 1/min	2873 1/min	2873 1/min	2873 1/min	2873 1/min	2873 1/min	2873 1/min	2873 1/min	2853 1/min	2853 1/min	2924 1/min	2924 1/min	2923 1/min	2923 1/min	2923 1/min	2923 1/min	2934 1/min	2934 1/min	2899 1/min	2899 1/min	2917 1/min	2917 1/min	2919 1/min	2919 1/min	2919 1/min	2919 1/min	2919 1/min	2919 1/min	2919 1/min	2919 1/min	2924 1/min	2924 1/min	2864 1/min	2864 1/min	2853 1/min	2853 1/min	2853 1/min	2853 1/min	2853 1/min	2853 1/min	2853 1/min	2853 1/min	2896 1/min	2896 1/min	2896 1/min	2896 1/min	2873 1/min	2873 1/min	2899 1/min	2899 1/min	2899 1/min	2899 1/min	2899 1/min	2899 1/min	2899 1/min	2899 1/min	2899 1/min	2899 1/min	2873 1/min	2873 1/min	2902 1/min	2902 1/min	2902 1/min	2902 1/min	2902 1/min	2902 1/min	2873 1/min	2873 1/min	2873 1/min	2873 1/min	2856 1/min	2856 1/min	2856 1/min	2856 1/min	2864 1/min	2864 1/min	2864 1/min	2864 1/min	2899 1/min	2896 1/min	2934 1/min	2934 1/min	2947 1/min	2947 1/min	2947 1/min	2947 1/min	2951 1/min	2951 1/min	2951 1/min	2951 1/min	2917 1/min	2902 1/min	2919 1/min	2919 1/min	2919 1/min	2919 1/min	2924 1/min	2924 1/min	2924 1/min	2924 1/min	2923 1/min	2923 1/min	2923 1/min	2923 1/min	2934 1/min	2934 1/min	2917 1/min	2902 1/min	2957 1/min	2957 1/min	2960 1/min	2960 1/min	2960 1/min	2960 1/min	2960 1/min	2919 1/min	2919 1/min	2924 1/min	2924 1/min	2923 1/min	2923 1/min	2934 1/min	2934 1/min	2947 1/min	2947 1/min	2951 1/min	2951 1/min	2951 1/min	2951 1/min	2957 1/min	2951 1/min	2896 1/min	2896 1/min	2899 1/min	2899 1/min	2899 1/min	2899 1/min	2899 1/min	2899 1/min	2899 1/min	2899 1/min	2899 1/min	2899 1/min	2899 1/min	2899 1/min	2902 1/min	2902 1/min	2873 1/min	2873 1/min	2902 1/min	2902 1/min	2917 1/min	2917 1/min	2917 1/min	2917 1/min	2917 1/min	2917 1/min	2917 1/min	2917 1/min	2856 1/min	2856 1/min	2919 1/min	2919 1/min	2919 1/min	2919 1/min	2856 1/min	2856 1/min	2864 1/min	2864 1/min	2853 1/min	2853 1/min	2853 1/min	2853 1/min	2853 1/min	2853 1/min	2896 1/min	2896 1/min
Omgevingstemperatuur	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-20-55 °C	-20-55 °C	-20-55 °C	-20-55 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-20-55 °C	-20-55 °C	-20-55 °C	-20-55 °C	-20-55 °C	-20-55 °C	-20-55 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-20-55 °C	-20-55 °C	-20-55 °C	-20-55 °C	-20-55 °C	-20-55 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C	-30-60 °C
Nom. spanning	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	380-415 V	380-415 V	380-415 V	380-415 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	220-240 V	220-240 V	380-415 V	380-415 V	380-415 V	380-415 V	220-240 V	220-240 V	220-240 V	220-240 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	220-240 V	220-240 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	220-240 V	220-240 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	380-415 V	220-240 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-420 V	380-420 V	380-420 V	380-420 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-420 V	380-420 V	380-420 V	380-420 V	380-420 V	380-420 V	380-420 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-420 V	380-420 V	380-420 V	380-420 V	380-420 V	380-420 V	220-240 V	220-240 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	220-240 V	220-240 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	380-415 V	220-240 V	220-240 V	380-415 V	380-415 V	380-415 V	380-415 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V
Inbouwlengte	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	261 mm	280 mm	261 mm	280 mm	261 mm	280 mm	261 mm	280 mm	261 mm	280 mm	261 mm	280 mm	261 mm	280 mm	261 mm	280 mm	261 mm	280 mm	261 mm	280 mm	261 mm	280 mm	261 mm	280 mm	280 mm	261 mm	280 mm	261 mm	280 mm	261 mm	280 mm	261 mm	300 mm	261 mm	300 mm	261 mm	300 mm	261 mm	300 mm	261 mm	300 mm	261 mm	300 mm	261 mm	300 mm	261 mm	300 mm	261 mm	300 mm	261 mm	300 mm	261 mm	300 mm	261 mm	300 mm	261 mm	300 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	261 mm	300 mm	261 mm	300 mm	261 mm	300 mm	261 mm	300 mm	261 mm	300 mm	261 mm	300 mm	261 mm	300 mm	261 mm	300 mm	261 mm	300 mm	261 mm	300 mm	261 mm	300 mm	261 mm	300 mm	250 mm	210 mm	210 mm	250 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	250 mm	210 mm	210 mm	250 mm	210 mm	250 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	210 mm	250 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	320 mm	320 mm	320 mm	320 mm	320 mm	320 mm	320 mm	320 mm	320 mm	320 mm	320 mm	320 mm	320 mm	320 mm	320 mm	320 mm	320 mm	320 mm	320 mm	320 mm	320 mm	320 mm	320 mm	320 mm	320 mm	320 mm	320 mm	320 mm	365 mm	365 mm	365 mm	365 mm	365 mm	365 mm	365 mm	365 mm	365 mm	365 mm	365 mm	365 mm	365 mm	365 mm	365 mm	365 mm	365 mm	365 mm	365 mm	365 mm	365 mm	365 mm	365 mm	365 mm	365 mm	250 mm	210 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	250 mm	210 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	250 mm	210 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	250 mm	210 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm	250 mm	210 mm
Nom. debiet	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h
Afgegeven motorvermogen (P2)	0.55 kW	0.55 kW	0.55 kW	0.55 kW	0.75 kW	0.75 kW	0.75 kW	0.75 kW	0.75 kW	0.75 kW	1.1 kW	1.1 kW	1.1 kW	1.1 kW	0.37 kW	0.37 kW	1.1 kW	1.1 kW	1.1 kW	1.1 kW	1.5 kW	1.5 kW	1.5 kW	1.5 kW	0.37 kW	0.37 kW	1.5 kW	1.5 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.55 kW	0.55 kW	0.55 kW	0.55 kW	0.37 kW	0.37 kW	4 kW	4 kW	4 kW	4 kW	5.5 kW	5.5 kW	5.5 kW	5.5 kW	7.5 kW	7.5 kW	0.75 kW	0.75 kW	7.5 kW	7.5 kW	7.5 kW	7.5 kW	1.1 kW	1.1 kW	1.5 kW	1.5 kW	2.2 kW	2.2 kW	2.2 kW	3 kW	3 kW	3 kW	3 kW	3 kW	3 kW	1.1 kW	1.1 kW	11 kW	11 kW	11 kW	11 kW	11 kW	11 kW	15 kW	15 kW	2.2 kW	2.2 kW	3 kW	3 kW	4 kW	4 kW	4 kW	4 kW	5.5 kW	5.5 kW	5.5 kW	5.5 kW	7.5 kW	7.5 kW	7.5 kW	7.5 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.55 kW	0.55 kW	0.55 kW	0.55 kW	0.55 kW	0.55 kW	0.37 kW	0.37 kW	0.75 kW	0.75 kW	0.75 kW	0.75 kW	0.75 kW	0.75 kW	1.1 kW	1.1 kW	0.37 kW	0.37 kW	1.1 kW	1.1 kW	1.1 kW	1.1 kW	1.1 kW	1.1 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	1.1 kW	1.1 kW	11 kW	11 kW	15 kW	15 kW	15 kW	15 kW	18.5 kW	18.5 kW	2.2 kW	2.2 kW	4 kW	4 kW	5.5 kW	5.5 kW	5.5 kW	5.5 kW	7.5 kW	7.5 kW	7.5 kW	7.5 kW	11 kW	11 kW	0.75 kW	0.75 kW	1.1 kW	1.1 kW	1.1 kW	1.1 kW	1.1 kW	1.1 kW	1.1 kW	1.1 kW	1.5 kW	1.5 kW	1.5 kW	1.5 kW	0.37 kW	0.37 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	0.37 kW	0.37 kW	3 kW	3 kW	3 kW	3 kW	3 kW	3 kW	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.55 kW	0.55 kW	0.55 kW	0.55 kW	0.75 kW	0.75 kW	0.75 kW	0.75 kW	2.2 kW	1.5 kW	18.5 kW	18.5 kW	22 kW	22 kW	22 kW	22 kW	30 kW	30 kW	30 kW	30 kW	4 kW	3 kW	5.5 kW	5.5 kW	7.5 kW	7.5 kW	11 kW	11 kW	11 kW	11 kW	15 kW	15 kW	15 kW	15 kW	18.5 kW	18.5 kW	4 kW	3 kW	37 kW	37 kW	45 kW	45 kW	45 kW	45 kW	45 kW	7.5 kW	5.5 kW	11 kW	11 kW	15 kW	15 kW	18.5 kW	18.5 kW	22 kW	22 kW	30 kW	30 kW	30 kW	30 kW	37 kW	30 kW	1.5 kW	1.5 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	3 kW	3 kW	0.37 kW	0.37 kW	3 kW	3 kW	4 kW	4 kW	4 kW	4 kW	4 kW	4 kW	4 kW	4 kW	0.55 kW	0.55 kW	5.5 kW	5.5 kW	5.5 kW	5.5 kW	0.55 kW	0.55 kW	0.75 kW	0.75 kW	1.1 kW	1.1 kW	1.1 kW	1.1 kW	1.1 kW	1.1 kW	1.5 kW	1.5 kW
Minimum Efficiëntie Index (MEI)	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.54	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57	0.57
Volumestroom (BEP)	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	1.8 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	10 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	17 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	0.9 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	21 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	3 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	30 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	45 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h	5.8 m³/h
Druk bij volumestroom (BEP)	461.77 kPa	461.77 kPa	501.96 kPa	501.96 kPa	559.81 kPa	559.81 kPa	600.99 kPa	600.99 kPa	682.36 kPa	682.36 kPa	785.3 kPa	785.3 kPa	866.67 kPa	866.67 kPa	96.08 kPa	96.08 kPa	947.07 kPa	947.07 kPa	1024.52 kPa	1024.52 kPa	1172.56 kPa	1172.56 kPa	1257.85 kPa	1257.85 kPa	152.94 kPa	152.94 kPa	1384.32 kPa	1384.32 kPa	1557.86 kPa	1557.86 kPa	1688.25 kPa	1688.25 kPa	199.02 kPa	199.02 kPa	244.12 kPa	244.12 kPa	277.45 kPa	277.45 kPa	329.41 kPa	329.41 kPa	378.43 kPa	378.43 kPa	420.59 kPa	420.59 kPa	69.61 kPa	69.61 kPa	800.01 kPa	800.01 kPa	948.05 kPa	948.05 kPa	1121.58 kPa	1121.58 kPa	1268.64 kPa	1268.64 kPa	1464.72 kPa	1464.72 kPa	150 kPa	150 kPa	1619.62 kPa	1619.62 kPa	1770.6 kPa	1770.6 kPa	226.47 kPa	226.47 kPa	312.75 kPa	312.75 kPa	399.02 kPa	399.02 kPa	473.53 kPa	560.79 kPa	560.79 kPa	635.3 kPa	635.3 kPa	708.83 kPa	708.83 kPa	97.06 kPa	97.06 kPa	1112.75 kPa	1112.75 kPa	1329.42 kPa	1329.42 kPa	1538.25 kPa	1538.25 kPa	1881.39 kPa	1881.39 kPa	215.69 kPa	215.69 kPa	325.49 kPa	325.49 kPa	439.22 kPa	439.22 kPa	543.14 kPa	543.14 kPa	659.81 kPa	659.81 kPa	763.73 kPa	763.73 kPa	882.36 kPa	882.36 kPa	986.28 kPa	986.28 kPa	391.18 kPa	391.18 kPa	426.47 kPa	426.47 kPa	460.79 kPa	460.79 kPa	499.02 kPa	499.02 kPa	583.34 kPa	583.34 kPa	651.97 kPa	651.97 kPa	719.61 kPa	719.61 kPa	85.29 kPa	85.29 kPa	816.67 kPa	816.67 kPa	886.28 kPa	886.28 kPa	953.93 kPa	953.93 kPa	1054.91 kPa	1054.91 kPa	125.49 kPa	125.49 kPa	1159.81 kPa	1159.81 kPa	1261.77 kPa	1261.77 kPa	1362.76 kPa	1362.76 kPa	165.69 kPa	165.69 kPa	206.86 kPa	206.86 kPa	244.12 kPa	244.12 kPa	281.37 kPa	281.37 kPa	318.63 kPa	318.63 kPa	355.89 kPa	355.89 kPa	97.06 kPa	97.06 kPa	1156.87 kPa	1156.87 kPa	1399.03 kPa	1399.03 kPa	1621.58 kPa	1621.58 kPa	1989.23 kPa	1989.23 kPa	215.69 kPa	215.69 kPa	339.22 kPa	339.22 kPa	457.85 kPa	457.85 kPa	568.63 kPa	568.63 kPa	690.2 kPa	690.2 kPa	800.99 kPa	800.99 kPa	932.36 kPa	932.36 kPa	454.91 kPa	454.91 kPa	516.67 kPa	516.67 kPa	558.83 kPa	558.83 kPa	600.99 kPa	600.99 kPa	683.34 kPa	683.34 kPa	811.77 kPa	811.77 kPa	906.87 kPa	906.87 kPa	94.12 kPa	94.12 kPa	1015.69 kPa	1015.69 kPa	1105.89 kPa	1105.89 kPa	1196.09 kPa	1196.09 kPa	1284.32 kPa	1284.32 kPa	1372.56 kPa	1372.56 kPa	148.04 kPa	148.04 kPa	1501.97 kPa	1501.97 kPa	1593.15 kPa	1593.15 kPa	1728.45 kPa	1728.45 kPa	187.26 kPa	187.26 kPa	229.41 kPa	229.41 kPa	279.41 kPa	279.41 kPa	321.57 kPa	321.57 kPa	375.49 kPa	375.49 kPa	418.63 kPa	418.63 kPa	138.24 kPa	104.9 kPa	1495.11 kPa	1434.33 kPa	1658.84 kPa	1596.09 kPa	1807.86 kPa	1740.21 kPa	1993.15 kPa	1929.43 kPa	2138.25 kPa	2078.45 kPa	289.22 kPa	221.57 kPa	432.36 kPa	372.55 kPa	579.42 kPa	520.59 kPa	745.1 kPa	683.34 kPa	886.28 kPa	825.5 kPa	1045.11 kPa	984.32 kPa	1186.28 kPa	1125.5 kPa	1351.97 kPa	1290.21 kPa	187.26 kPa	147.06 kPa	2007.86 kPa	1929.43 kPa	2250.02 kPa	2172.57 kPa	2451 kPa	2373.55 kPa	2574.53 kPa	380.4 kPa	300 kPa	582.36 kPa	508.83 kPa	780.4 kPa	706.87 kPa	984.32 kPa	909.81 kPa	1187.26 kPa	1110.79 kPa	1410.8 kPa	1332.36 kPa	1604.91 kPa	1527.46 kPa	1813.74 kPa	1720.6 kPa	507.85 kPa	507.85 kPa	553.93 kPa	553.93 kPa	600 kPa	600 kPa	648.04 kPa	648.04 kPa	697.06 kPa	697.06 kPa	744.12 kPa	744.12 kPa	792.16 kPa	792.16 kPa	911.77 kPa	911.77 kPa	88.24 kPa	88.24 kPa	1008.83 kPa	1008.83 kPa	1130.4 kPa	1130.4 kPa	1230.4 kPa	1230.4 kPa	1328.44 kPa	1328.44 kPa	1474.52 kPa	1474.52 kPa	146.08 kPa	146.08 kPa	1652.95 kPa	1652.95 kPa	1854.92 kPa	1854.92 kPa	190.2 kPa	190.2 kPa	236.28 kPa	236.28 kPa	300 kPa	300 kPa	346.08 kPa	346.08 kPa	395.1 kPa	395.1 kPa	467.65 kPa	467.65 kPa
Aansluitstandaard inlaatzijde	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig
Aansluitstandaard perszijde	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	EN 1092-2	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig
Druktrap klasse	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 16	PN 16	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	PN 16	PN 16	PN 16	PN 16	PN 16	PN 16	PN 16	PN 16	PN 16	PN 16	PN 16	PN 16	Overig	Overig	Overig	Overig	PN 16	PN 16	Overig	Overig	Overig	Overig	Overig	Overig	Overig	PN 16	PN 16	PN 16	PN 16	PN 16	PN 16	PN 16	PN 16	Overig	Overig	Overig	Overig	Overig	Overig	Overig	Overig	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25	PN 25
Npsh	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	11 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	21 kPa	14 kPa	14 kPa	14 kPa	14 kPa	14 kPa	14 kPa	14 kPa	14 kPa	14 kPa	14 kPa	14 kPa	14 kPa	14 kPa	14 kPa	14 kPa	14 kPa	14 kPa	14 kPa	14 kPa	14 kPa	14 kPa	14 kPa	14 kPa	14 kPa	14 kPa	14 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	25 kPa	18 kPa	18 kPa	18 kPa	18 kPa	18 kPa	18 kPa	18 kPa	18 kPa	18 kPa	18 kPa	18 kPa	18 kPa	18 kPa	18 kPa	18 kPa	18 kPa	18 kPa	18 kPa	18 kPa	18 kPa	18 kPa	18 kPa	18 kPa	18 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	13 kPa	20 kPa	20 kPa	20 kPa	20 kPa	20 kPa	20 kPa	20 kPa	20 kPa	20 kPa	20 kPa	20 kPa	20 kPa	20 kPa	20 kPa	20 kPa	20 kPa	20 kPa	20 kPa	20 kPa	20 kPa	20 kPa	20 kPa	20 kPa	20 kPa	20 kPa	20 kPa	20 kPa	20 kPa	24 kPa	24 kPa	24 kPa	24 kPa	24 kPa	24 kPa	24 kPa	24 kPa	24 kPa	24 kPa	24 kPa	24 kPa	24 kPa	24 kPa	24 kPa	24 kPa	24 kPa	24 kPa	24 kPa	24 kPa	24 kPa	24 kPa	24 kPa	24 kPa	24 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa	16 kPa
Druktrap klasse flens	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	PN 25	Overig	Overig	PN 25	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	PN 25	Overig	Overig	PN 25	Overig	PN 25	PN 25	Overig	PN 25	Overig	PN 25	Overig	Overig	PN 25	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 25	Overig	Overig	PN 25	Overig	PN 25	Overig	PN 25	PN 25	Overig	Overig	PN 25	Overig	PN 25	Overig	PN 25	PN 25	Overig	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	PN 25	Overig	Overig	PN 25	Overig	PN 25	Overig	PN 25	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig
Max. werkdruk	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	16 bar	16 bar	30 bar	30 bar	30 bar	30 bar	30 bar	30 bar	30 bar	30 bar	30 bar	30 bar	16 bar	16 bar	16 bar	16 bar	16 bar	16 bar	16 bar	16 bar	16 bar	16 bar	16 bar	16 bar	30 bar	30 bar	30 bar	30 bar	16 bar	16 bar	30 bar	30 bar	30 bar	30 bar	33 bar	33 bar	33 bar	16 bar	16 bar	16 bar	16 bar	16 bar	16 bar	16 bar	16 bar	30 bar	30 bar	30 bar	30 bar	30 bar	30 bar	30 bar	30 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar	25 bar
Opvoerhoogte bij nom. debiet	461.77 kPa	461.77 kPa	501.97 kPa	501.97 kPa	559.82 kPa	559.82 kPa	600.99 kPa	600.99 kPa	682.37 kPa	682.37 kPa	785.31 kPa	785.31 kPa	866.69 kPa	866.69 kPa	96.08 kPa	96.08 kPa	947.08 kPa	947.08 kPa	1024.53 kPa	1024.53 kPa	1172.58 kPa	1172.58 kPa	1257.87 kPa	1257.87 kPa	152.94 kPa	152.94 kPa	1384.34 kPa	1384.34 kPa	1557.88 kPa	1557.88 kPa	1688.27 kPa	1688.27 kPa	199.02 kPa	199.02 kPa	244.12 kPa	244.12 kPa	277.46 kPa	277.46 kPa	329.42 kPa	329.42 kPa	378.44 kPa	378.44 kPa	420.6 kPa	420.6 kPa	69.61 kPa	69.61 kPa	800.02 kPa	800.02 kPa	948.06 kPa	948.06 kPa	1121.59 kPa	1121.59 kPa	1268.66 kPa	1268.66 kPa	1464.74 kPa	1464.74 kPa	150 kPa	150 kPa	1619.64 kPa	1619.64 kPa	1770.63 kPa	1770.63 kPa	226.48 kPa	226.48 kPa	312.75 kPa	312.75 kPa	399.03 kPa	399.03 kPa	473.54 kPa	560.8 kPa	560.8 kPa	635.31 kPa	635.31 kPa	708.84 kPa	708.84 kPa	97.06 kPa	97.06 kPa	1112.77 kPa	1112.77 kPa	1329.44 kPa	1329.44 kPa	1538.27 kPa	1538.27 kPa	1881.41 kPa	1881.41 kPa	215.69 kPa	215.69 kPa	325.5 kPa	325.5 kPa	439.23 kPa	439.23 kPa	543.15 kPa	543.15 kPa	659.82 kPa	659.82 kPa	763.74 kPa	763.74 kPa	882.37 kPa	882.37 kPa	986.3 kPa	986.3 kPa	391.19 kPa	391.19 kPa	426.48 kPa	426.48 kPa	460.79 kPa	460.79 kPa	499.03 kPa	499.03 kPa	583.35 kPa	583.35 kPa	651.98 kPa	651.98 kPa	719.62 kPa	719.62 kPa	85.3 kPa	85.3 kPa	816.68 kPa	816.68 kPa	886.29 kPa	886.29 kPa	953.94 kPa	953.94 kPa	1054.93 kPa	1054.93 kPa	125.49 kPa	125.49 kPa	1159.83 kPa	1159.83 kPa	1261.79 kPa	1261.79 kPa	1362.78 kPa	1362.78 kPa	165.69 kPa	165.69 kPa	206.87 kPa	206.87 kPa	244.12 kPa	244.12 kPa	281.38 kPa	281.38 kPa	318.63 kPa	318.63 kPa	355.89 kPa	355.89 kPa	97.06 kPa	97.06 kPa	1156.89 kPa	1156.89 kPa	1399.05 kPa	1399.05 kPa	1621.6 kPa	1621.6 kPa	1989.26 kPa	1989.26 kPa	215.69 kPa	215.69 kPa	339.22 kPa	339.22 kPa	457.85 kPa	457.85 kPa	568.64 kPa	568.64 kPa	690.21 kPa	690.21 kPa	801 kPa	801 kPa	932.37 kPa	932.37 kPa	454.91 kPa	454.91 kPa	516.68 kPa	516.68 kPa	558.84 kPa	558.84 kPa	600.99 kPa	600.99 kPa	683.35 kPa	683.35 kPa	811.78 kPa	811.78 kPa	906.88 kPa	906.88 kPa	94.12 kPa	94.12 kPa	1015.71 kPa	1015.71 kPa	1105.91 kPa	1105.91 kPa	1196.11 kPa	1196.11 kPa	1284.34 kPa	1284.34 kPa	1372.58 kPa	1372.58 kPa	148.04 kPa	148.04 kPa	1501.99 kPa	1501.99 kPa	1593.17 kPa	1593.17 kPa	1728.47 kPa	1728.47 kPa	187.26 kPa	187.26 kPa	229.42 kPa	229.42 kPa	279.42 kPa	279.42 kPa	321.58 kPa	321.58 kPa	375.5 kPa	375.5 kPa	418.64 kPa	418.64 kPa	138.24 kPa	104.9 kPa	1495.13 kPa	1434.35 kPa	1658.86 kPa	1596.11 kPa	1807.88 kPa	1740.23 kPa	1993.18 kPa	1929.45 kPa	2138.28 kPa	2078.48 kPa	289.22 kPa	221.57 kPa	432.36 kPa	372.56 kPa	579.42 kPa	520.6 kPa	745.11 kPa	683.35 kPa	886.29 kPa	825.51 kPa	1045.12 kPa	984.34 kPa	1186.3 kPa	1125.52 kPa	1351.99 kPa	1290.22 kPa	187.26 kPa	147.06 kPa	2007.89 kPa	1929.45 kPa	2250.05 kPa	2172.6 kPa	2451.03 kPa	2373.58 kPa	2574.57 kPa	380.4 kPa	300.01 kPa	582.37 kPa	508.83 kPa	780.41 kPa	706.88 kPa	984.34 kPa	909.82 kPa	1187.28 kPa	1110.81 kPa	1410.82 kPa	1332.38 kPa	1604.94 kPa	1527.48 kPa	1813.77 kPa	1720.63 kPa	507.85 kPa	507.85 kPa	553.93 kPa	553.93 kPa	600.01 kPa	600.01 kPa	648.05 kPa	648.05 kPa	697.07 kPa	697.07 kPa	744.13 kPa	744.13 kPa	792.17 kPa	792.17 kPa	911.78 kPa	911.78 kPa	88.24 kPa	88.24 kPa	1008.85 kPa	1008.85 kPa	1130.42 kPa	1130.42 kPa	1230.42 kPa	1230.42 kPa	1328.46 kPa	1328.46 kPa	1474.54 kPa	1474.54 kPa	146.08 kPa	146.08 kPa	1652.98 kPa	1652.98 kPa	1854.94 kPa	1854.94 kPa	190.2 kPa	190.2 kPa	236.28 kPa	236.28 kPa	300.01 kPa	300.01 kPa	346.09 kPa	346.09 kPa	395.11 kPa	395.11 kPa	467.66 kPa	467.66 kPa
Hoogte pomp	599 mm	574 mm	617 mm	592 mm	681 mm	656 mm	699 mm	674 mm	735 mm	710 mm	791 mm	766 mm	827 mm	802 mm	473 mm	448 mm	863 mm	838 mm	899 mm	874 mm	981 mm	956 mm	1017 mm	992 mm	473 mm	448 mm	1071 mm	1046 mm	1165 mm	1140 mm	1219 mm	1194 mm	491 mm	466 mm	509 mm	484 mm	527 mm	502 mm	545 mm	520 mm	563 mm	538 mm	581 mm	556 mm	544 mm	544 mm	990 mm	990 mm	1050 mm	1050 mm	1161 mm	1161 mm	1221 mm	1221 mm	1269 mm	1269 mm	588 mm	588 mm	1329 mm	1329 mm	1389 mm	1389 mm	638 mm	638 mm	714 mm	714 mm	784 mm	784 mm	814 mm	863 mm	863 mm	893 mm	893 mm	923 mm	923 mm	648 mm	648 mm	1369 mm	1369 mm	1459 mm	1459 mm	1549 mm	1549 mm	1684 mm	1684 mm	734 mm	734 mm	798 mm	798 mm	880 mm	880 mm	925 mm	925 mm	1021 mm	1021 mm	1066 mm	1066 mm	1099 mm	1099 mm	1144 mm	1144 mm	599 mm	574 mm	617 mm	592 mm	635 mm	610 mm	653 mm	628 mm	689 mm	664 mm	725 mm	700 mm	761 mm	736 mm	473 mm	448 mm	843 mm	818 mm	879 mm	854 mm	915 mm	890 mm	971 mm	946 mm	473 mm	448 mm	1025 mm	1000 mm	1079 mm	1054 mm	1133 mm	1108 mm	491 mm	466 mm	509 mm	484 mm	527 mm	502 mm	545 mm	520 mm	563 mm	538 mm	581 mm	556 mm	648 mm	648 mm	1369 mm	1369 mm	1459 mm	1459 mm	1549 mm	1549 mm	1728 mm	1728 mm	734 mm	734 mm	835 mm	835 mm	931 mm	931 mm	976 mm	976 mm	1009 mm	1009 mm	1054 mm	1054 mm	1279 mm	1279 mm	645 mm	620 mm	658 mm	683 mm	701 mm	676 mm	719 mm	694 mm	755 mm	730 mm	837 mm	812 mm	873 mm	848 mm	473 mm	448 mm	924 mm	949 mm	960 mm	985 mm	996 mm	1021 mm	1032 mm	1057 mm	1068 mm	1093 mm	473 mm	448 mm	1123 mm	1148 mm	1159 mm	1184 mm	1238 mm	1213 mm	491 mm	466 mm	509 mm	484 mm	502 mm	527 mm	545 mm	520 mm	609 mm	584 mm	627 mm	602 mm	826 mm	786 mm	1771 mm	1771 mm	1867 mm	1867 mm	1937 mm	1937 mm	2066 mm	2066 mm	2136 mm	2136 mm	947 mm	910 mm	1036 mm	1036 mm	1094 mm	1094 mm	1377 mm	1377 mm	1447 mm	1447 mm	1517 mm	1517 mm	1587 mm	1587 mm	1701 mm	1701 mm	931 mm	894 mm	2025 mm	2025 mm	2177 mm	2177 mm	2257 mm	2257 mm	2337 mm	1018 mm	1030 mm	1311 mm	1311 mm	1391 mm	1391 mm	1515 mm	1515 mm	1621 mm	1621 mm	1760 mm	1760 mm	1840 mm	1840 mm	1945 mm	1920 mm	801 mm	776 mm	843 mm	868 mm	870 mm	895 mm	897 mm	922 mm	949 mm	924 mm	951 mm	976 mm	978 mm	1003 mm	1051 mm	1076 mm	473 mm	448 mm	1105 mm	1130 mm	1196 mm	1221 mm	1250 mm	1275 mm	1304 mm	1329 mm	1385 mm	1410 mm	500 mm	475 mm	1514 mm	1539 mm	1622 mm	1647 mm	502 mm	527 mm	600 mm	575 mm	647 mm	622 mm	674 mm	649 mm	701 mm	676 mm	774 mm	749 mm
Nom. diameter	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	2" (50)	DN 40	2" (50)	DN 40	2" (50)	DN 40	2" (50)	DN 40	2" (50)	DN 40	2" (50)	DN 40	2" (50)	DN 40	2" (50)	DN 40	2" (50)	DN 40	2" (50)	DN 40	2" (50)	DN 40	2" (50)	DN 40	DN 40	2" (50)	DN 40	2" (50)	DN 40	2" (50)	DN 40	2" (50)	DN 50	2" (50)	DN 50	2" (50)	DN 50	2" (50)	DN 50	2" (50)	DN 50	2" (50)	DN 50	2" (50)	DN 50	2" (50)	DN 50	2" (50)	DN 50	2" (50)	DN 50	2" (50)	DN 50	2" (50)	DN 50	2" (50)	DN 50	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	2" (50)	DN 50	2" (50)	DN 50	2" (50)	DN 50	2" (50)	DN 50	2" (50)	DN 50	2" (50)	DN 50	2" (50)	DN 50	2" (50)	DN 50	2" (50)	DN 50	2" (50)	DN 50	2" (50)	DN 50	2" (50)	DN 50	DN 32	1 1/4" (32)	1 1/4" (32)	DN 32	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	DN 32	1 1/4" (32)	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	1 1/4" (32)	DN 32	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 32	1 1/4" (32)	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	DN 32	1 1/4" (32)	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	DN 32	1 1/4" (32)	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	DN 32	1 1/4" (32)	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)	DN 32	1 1/4" (32)
Aansluiting inlaatzijde	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Overig	Overig	Flens	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Overig	Overig	Flens	Overig	Flens	Flens	Overig	Flens	Overig	Flens	Overig	Overig	Flens	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Overig	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Overig	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Overig	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Overig	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig
Nom. diameter aansluiting inlaatzijde	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	2" (50)	1 1/2" (40)	2" (50)	1 1/2" (40)	2" (50)	1 1/2" (40)	2" (50)	1 1/2" (40)	2" (50)	1 1/2" (40)	2" (50)	1 1/2" (40)	2" (50)	1 1/2" (40)	2" (50)	1 1/2" (40)	2" (50)	1 1/2" (40)	2" (50)	1 1/2" (40)	2" (50)	1 1/2" (40)	2" (50)	1 1/2" (40)	1 1/2" (40)	2" (50)	1 1/2" (40)	2" (50)	1 1/2" (40)	2" (50)	1 1/2" (40)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)
Nom. diameter aansluiting perszijde	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	2" (50)	1 1/2" (40)	2" (50)	1 1/2" (40)	2" (50)	1 1/2" (40)	2" (50)	1 1/2" (40)	2" (50)	1 1/2" (40)	2" (50)	1 1/2" (40)	2" (50)	1 1/2" (40)	2" (50)	1 1/2" (40)	2" (50)	1 1/2" (40)	2" (50)	1 1/2" (40)	2" (50)	1 1/2" (40)	2" (50)	1 1/2" (40)	1 1/2" (40)	2" (50)	1 1/2" (40)	2" (50)	1 1/2" (40)	2" (50)	1 1/2" (40)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	2" (50)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 65	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	DN 80	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)	1 1/4" (32)
Aansluiting perszijde	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Overig	Overig	Flens	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Overig	Overig	Flens	Overig	Flens	Flens	Overig	Flens	Overig	Flens	Overig	Overig	Flens	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Flens	Overig	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Overig	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Overig	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Overig	Overig	Flens	Overig	Flens	Overig	Flens	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig	Flens	Overig
Druktrap flens aansluiting inlaatzijde	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	PN 25	Overig	Overig	PN 25	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	PN 25	Overig	Overig	PN 25	Overig	PN 25	PN 25	Overig	PN 25	Overig	PN 25	Overig	Overig	PN 25	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 25	Overig	Overig	PN 25	Overig	PN 25	Overig	PN 25	PN 25	Overig	Overig	PN 25	Overig	PN 25	Overig	PN 25	PN 25	Overig	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	PN 25	Overig	Overig	PN 25	Overig	PN 25	Overig	PN 25	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig
Druktrap flens aansluiting perszijde	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	PN 25	Overig	Overig	PN 25	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	PN 25	Overig	Overig	PN 25	Overig	PN 25	PN 25	Overig	PN 25	Overig	PN 25	Overig	Overig	PN 25	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 25	Overig	Overig	PN 25	Overig	PN 25	Overig	PN 25	PN 25	Overig	Overig	PN 25	Overig	PN 25	Overig	PN 25	PN 25	Overig	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	PN 25	Overig	Overig	PN 25	Overig	PN 25	Overig	PN 25	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig	PN 25	Overig
