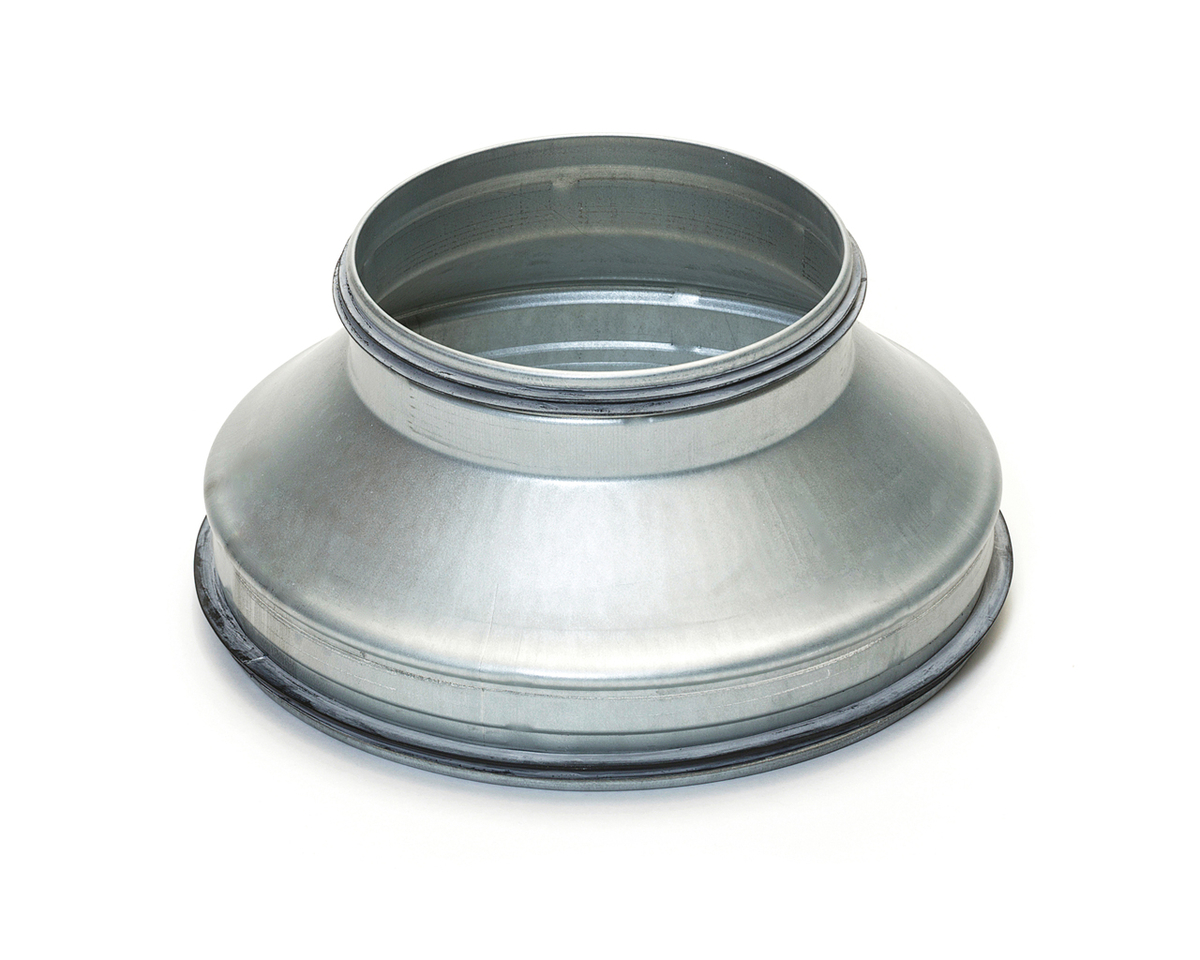

Spiralo Geperst verloop 224-180mm
| Merk |
Spiralo |
| Titel |
Geperst verloop 224-180mm |
| Artikelnummer |
A0370694 |
| Fabrikantnummer |
4857272 |
| EAN code |
08715577012050 |
| Merk | Air Spiralo® |
|---|
| Geïsoleerd | nee |
|---|
| Oppervlaktebescherming | Sendzimir verzinkt |
|---|
| Aansluiting 1 | Insteekeind |
|---|
| Aansluiting 2 | Insteekeind |
|---|
| Kwaliteitsklasse | Overig |
|---|
| Materiaal | Sendzimir verzinkt staal |
|---|
| Excentrisch | nee |
|---|
| Hulpstukverloop | nee |
|---|
| Buisverloop | ja |
|---|
| Met voorgemonteerde afdichting | ja |
|---|
| Geperst | ja |
|---|
| Luchtdichtheidsklasse volgens EN 1751 | D |
|---|
| | 100-80mm | 125-100mm | 125-80mm | 150-100mm | 150-125mm | 160-100mm | 160-125mm | 160-150mm | 160-80mm | 180-150mm | 200-100mm | 200-125mm | 200-150mm | 200-160mm | 224-160mm | 224-180mm | 224-200mm | 250-125mm | 250-150mm | 250-160mm | 250-180mm | 250-200mm | 250-224mm | 300-200mm | 300-250mm | 315-160mm | 315-200mm | 315-250mm |
|---|
| Lengte | 98 mm | 100 mm | 111 mm | 113 mm | 101 mm | 118 mm | 103 mm | 93 mm | 128 mm | 103 mm | 138 mm | 126 mm | 113 mm | 107 mm | 130 mm | 120 mm | 110 mm | 161 mm | 135 mm | 143 mm | 133 mm | 123 mm | 111 mm | 148 mm | 133 mm | 176 mm | 156 mm | 141 mm |
|---|
| Werkende lengte | 28 mm | 30 mm | 41 mm | 43 mm | 31 mm | 48 mm | 33 mm | 23 mm | 58 mm | 33 mm | 68 mm | 56 mm | 43 mm | 37 mm | 50 mm | 40 mm | 30 mm | 81 mm | 55 mm | 63 mm | 53 mm | 43 mm | 31 mm | 68 mm | 43 mm | 96 mm | 76 mm | 51 mm |
|---|
| Lengte aansluiting 1 | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
|---|
| Lengte aansluiting 2 | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 45 mm | 35 mm | 35 mm | 45 mm |
|---|
| Werkende lengte aansluiting 1 | 28 mm | 30 mm | 41 mm | 43 mm | 31 mm | 48 mm | 33 mm | 23 mm | 58 mm | 33 mm | 68 mm | 56 mm | 43 mm | 37 mm | 50 mm | 40 mm | 30 mm | 81 mm | 55 mm | 63 mm | 53 mm | 43 mm | 31 mm | 68 mm | 43 mm | 96 mm | 76 mm | 51 mm |
|---|
| Insteeklengte | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 45 mm | 35 mm | 35 mm | 45 mm |
|---|
| Nom. kanaaldiameter aansluiting 1 | 100 mm | 125 mm | 125 mm | 150 mm | 150 mm | 160 mm | 160 mm | 160 mm | 160 mm | 180 mm | 200 mm | 200 mm | 200 mm | 200 mm | 224 mm | 224 mm | 224 mm | 250 mm | 250 mm | 250 mm | 250 mm | 250 mm | 250 mm | 300 mm | 315 mm | 315 mm | 315 mm | 315 mm |
|---|
| Nom. kanaaldiameter aansluiting 2 | 80 mm | 100 mm | 80 mm | 100 mm | 125 mm | 100 mm | 125 mm | 150 mm | 80 mm | 150 mm | 100 mm | 125 mm | 150 mm | 160 mm | 160 mm | 180 mm | 200 mm | 125 mm | 150 mm | 160 mm | 180 mm | 200 mm | 224 mm | 200 mm | 250 mm | 160 mm | 200 mm | 250 mm |
|---|
