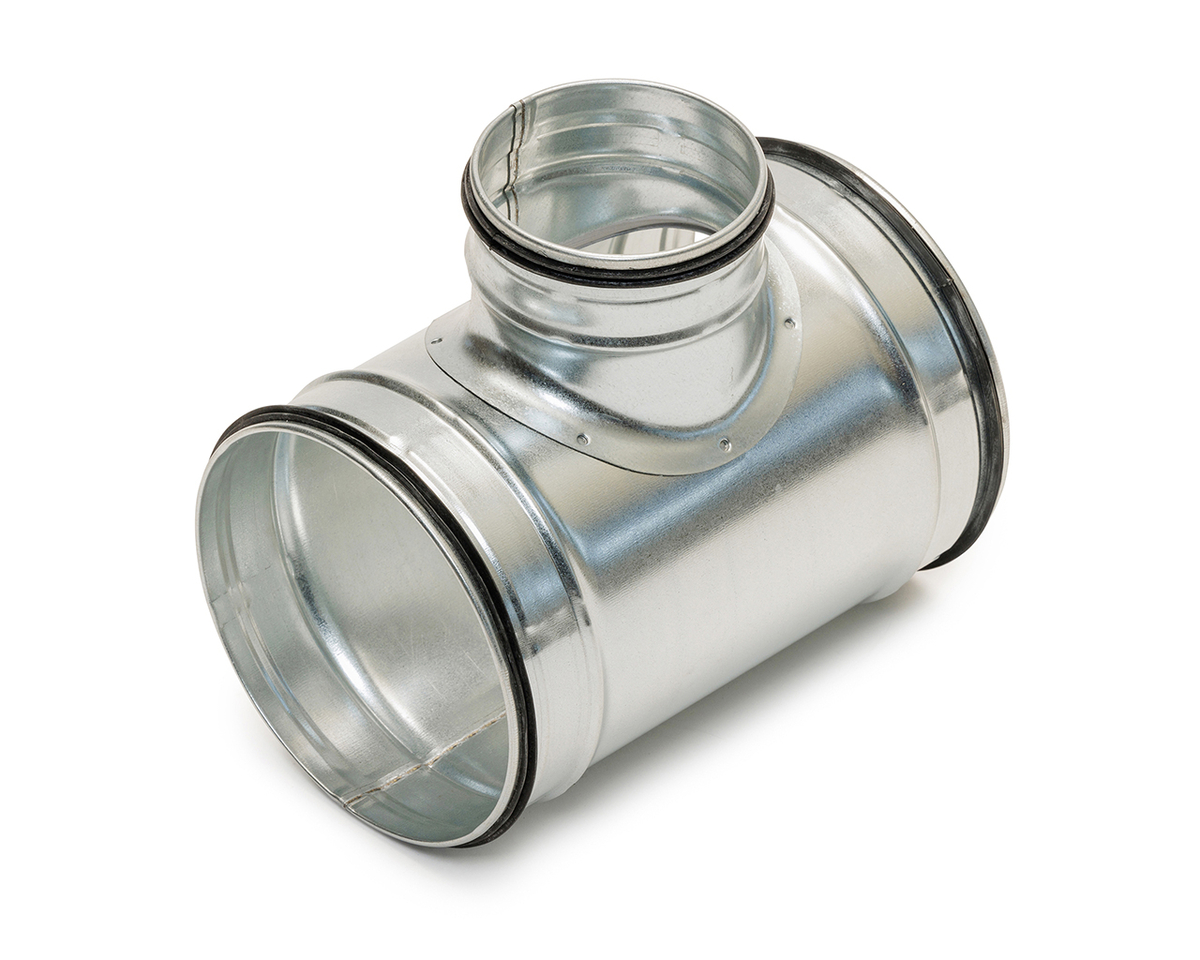

Spiralo T-stuk 100mm 90gr.
| Merk |
Spiralo |
| Titel |
T-stuk 100mm 90gr. |
| Artikelnummer |
A0370464 |
| Fabrikantnummer |
6339899 |
| EAN code |
08715577021854 |
| Merk | Air Spiralo® |
|---|
| Geïsoleerd | nee |
|---|
| Oppervlaktebescherming | Sendzimir verzinkt |
|---|
| Aansluiting 1 | Insteekeind |
|---|
| Aansluiting 2 | Insteekeind |
|---|
| Kwaliteitsklasse | Overig |
|---|
| Materiaal | Staal |
|---|
| Excentrisch | nee |
|---|
| Aansluiting 3 | Insteekeind |
|---|
| Met voorgemonteerde afdichting | ja |
|---|
| Uitvoeringsvorm | T-stuk |
|---|
| Luchtdichtheidsklasse volgens EN 1751 | D |
|---|
| | 100mm 45gr. | 100mm 90gr. | 125mm 45gr. | 125mm 90gr. | 150mm 45gr. | 150mm 90gr. | 160mm 45gr. | 160mm 90gr. | 180mm 90gr. | 200mm 45gr. | 200mm 90 gr. | 250mm 45gr. | 300mm 90gr. | 315mm 45gr. | 355mm 45gr. | 355mm 90gr. | 400mm 45gr. | 400mm 90gr. | 450mm 45gr. | 450mm 90gr. | 500mm 90gr. | 80mm 90gr. | verl.100x125x100mm 90gr. | verl.100x160x100mm 90gr. | verl.100x80x100mm 90gr. | verl.125x100x125mm 90gr. | verl.125x150x125mm 90gr. | verl.125x160x125mm 90gr. | verl.125x80x125mm 90gr. | verl.150x100x150mm 90gr. | verl.150x125x150mm 90gr. | verl.160x100x160mm 90gr. | verl.160x125x160mm 90gr. | verl.160x150x160mm 90gr. | verl.160x200x160mm 90gr. | verl.160x250x160mm 90gr. | verl.200x100x200mm 90gr. | verl.200x125x200mm 90gr. | verl.200x150x200mm 90gr. | verl.200x160x200mm 90gr. | verl.200x250x200mm 90gr. | verl.250x100x250mm 90gr. | verl.250x125x250mm 90gr. | verl.250x150x250mm 90gr. | verl.250x160x250mm 90gr. | verl.250x200x250mm 90gr. |
|---|
| Hoek | 45 ° | 90 ° | 45 ° | 90 ° | 45 ° | 90 ° | 45 ° | 90 ° | 90 ° | 45 ° | 90 ° | 45 ° | 90 ° | 45 ° | 45 ° | 90 ° | 45 ° | 90 ° | 45 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° |
|---|
| Uitvoering omgekeerd (negatief) T-stuk | nee | nee | nee | nee | nee | nee | nee | nee | nee | nee | nee | nee | nee | nee | nee | nee | nee | nee | nee | nee | nee | nee | ja | ja | nee | nee | ja | ja | nee | nee | nee | nee | nee | nee | ja | ja | nee | nee | nee | nee | ja | nee | nee | nee | nee | nee |
|---|
| Werkende lengte aansluiting 1 | 121 mm | 84 mm | 138 mm | 92 mm | 158 mm | 105 mm | 163 mm | 112 mm | 164 mm | 192 mm | 138 mm | 227 mm | 200 mm | 320 mm | 348 mm | 262 mm | 380 mm | 285 mm | 415 mm | 310 mm | 340 mm | 84 mm | 112 mm | 140 mm | 84 mm | 84 mm | 152 mm | 137 mm | 84 mm | 84 mm | 92 mm | 84 mm | 105 mm | 105 mm | 170 mm | 193 mm | 87 mm | 105 mm | 154 mm | 154 mm | 197 mm | 88 mm | 99 mm | 127 mm | 149 mm | 153 mm |
|---|
| Werkende lengte aansluiting 2 | 121 mm | 84 mm | 138 mm | 92 mm | 158 mm | 105 mm | 163 mm | 112 mm | 164 mm | 192 mm | 138 mm | 227 mm | 200 mm | 320 mm | 348 mm | 262 mm | 380 mm | 285 mm | 415 mm | 310 mm | 340 mm | 84 mm | 112 mm | 140 mm | 84 mm | 84 mm | 152 mm | 137 mm | 84 mm | 84 mm | 92 mm | 84 mm | 105 mm | 105 mm | 170 mm | 193 mm | 87 mm | 105 mm | 154 mm | 154 mm | 197 mm | 88 mm | 99 mm | 127 mm | 149 mm | 153 mm |
|---|
| Werkende lengte aansluiting 3 | 171 mm | 78 mm | 201 mm | 82 mm | 235 mm | 103 mm | 242 mm | 107 mm | 110 mm | 290 mm | 125 mm | 350 mm | 200 mm | 480 mm | 525 mm | 265 mm | 580 mm | 285 mm | 640 mm | 310 mm | 340 mm | 65 mm | 105 mm | 100 mm | 75 mm | 85 mm | 145 mm | 145 mm | 87 mm | 100 mm | 90 mm | 105 mm | 100 mm | 135 mm | 155 mm | 145 mm | 115 mm | 120 mm | 120 mm | 123 mm | 200 mm | 140 mm | 147 mm | 145 mm | 130 mm | 150 mm |
|---|
| Nom. kanaaldiameter aansluiting 1 | 100 mm | 100 mm | 125 mm | 125 mm | 150 mm | 150 mm | 160 mm | 160 mm | 180 mm | 200 mm | 200 mm | 250 mm | 300 mm | 315 mm | 355 mm | 355 mm | 400 mm | 400 mm | 450 mm | 450 mm | 500 mm | 80 mm | 100 mm | 100 mm | 100 mm | 125 mm | 125 mm | 125 mm | 125 mm | 150 mm | 150 mm | 160 mm | 160 mm | 160 mm | 160 mm | 160 mm | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm | 250 mm | 250 mm | 250 mm | 250 mm | 250 mm |
|---|
| Nom. kanaaldiameter aansluiting 2 | 100 mm | 100 mm | 125 mm | 125 mm | 150 mm | 150 mm | 160 mm | 160 mm | 180 mm | 200 mm | 200 mm | 250 mm | 300 mm | 315 mm | 355 mm | 355 mm | 400 mm | 400 mm | 450 mm | 450 mm | 500 mm | 80 mm | 100 mm | 100 mm | 100 mm | 125 mm | 125 mm | 125 mm | 125 mm | 150 mm | 150 mm | 160 mm | 160 mm | 160 mm | 160 mm | 160 mm | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm | 250 mm | 250 mm | 250 mm | 250 mm | 250 mm |
|---|
| Nom. kanaaldiameter aansluiting 3 | 100 mm | 100 mm | 125 mm | 125 mm | 150 mm | 150 mm | 160 mm | 160 mm | 180 mm | 200 mm | 200 mm | 250 mm | 300 mm | 315 mm | 355 mm | 355 mm | 400 mm | 400 mm | 450 mm | 450 mm | 500 mm | 80 mm | 125 mm | 160 mm | 80 mm | 100 mm | 150 mm | 160 mm | 80 mm | 100 mm | 125 mm | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm | 100 mm | 125 mm | 150 mm | 160 mm | 250 mm | 100 mm | 125 mm | 150 mm | 160 mm | 200 mm |
|---|
| Hoek (graden) | 45 ° | 90 ° | 45 ° | 90 ° | 45 ° | 90 ° | 45 ° | 90 ° | 90 ° | 45 ° | 90 ° | 45 ° | 90 ° | 45 ° | 45 ° | 90 ° | 45 ° | 90 ° | 45 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° |
|---|
| Niet geperst | ja | nee | ja | nee | ja | nee | ja | nee | nee | ja | nee | ja | ja | ja | ja | ja | ja | ja | ja | ja | ja | nee | ja | ja | nee | nee | ja | ja | nee | nee | nee | nee | nee | nee | ja | ja | nee | nee | nee | nee | ja | nee | nee | nee | nee | nee |
|---|
| Insteeklengte aansluiting 1 | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 48 mm | 35 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 54 mm | 35 mm | 48 mm | 48 mm | 35 mm | 35 mm | 48 mm | 48 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 48 mm | 48 mm | 35 mm | 35 mm | 35 mm | 35 mm | 48 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
|---|
| Insteeklengte aansluiting 2 | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 48 mm | 35 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 54 mm | 35 mm | 48 mm | 48 mm | 35 mm | 35 mm | 48 mm | 48 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 48 mm | 48 mm | 35 mm | 35 mm | 35 mm | 35 mm | 48 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
|---|
| Insteeklengte aansluiting 3 | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 48 mm | 35 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 54 mm | 35 mm | 48 mm | 48 mm | 35 mm | 35 mm | 48 mm | 48 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 48 mm | 58 mm | 35 mm | 35 mm | 35 mm | 35 mm | 58 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
|---|
