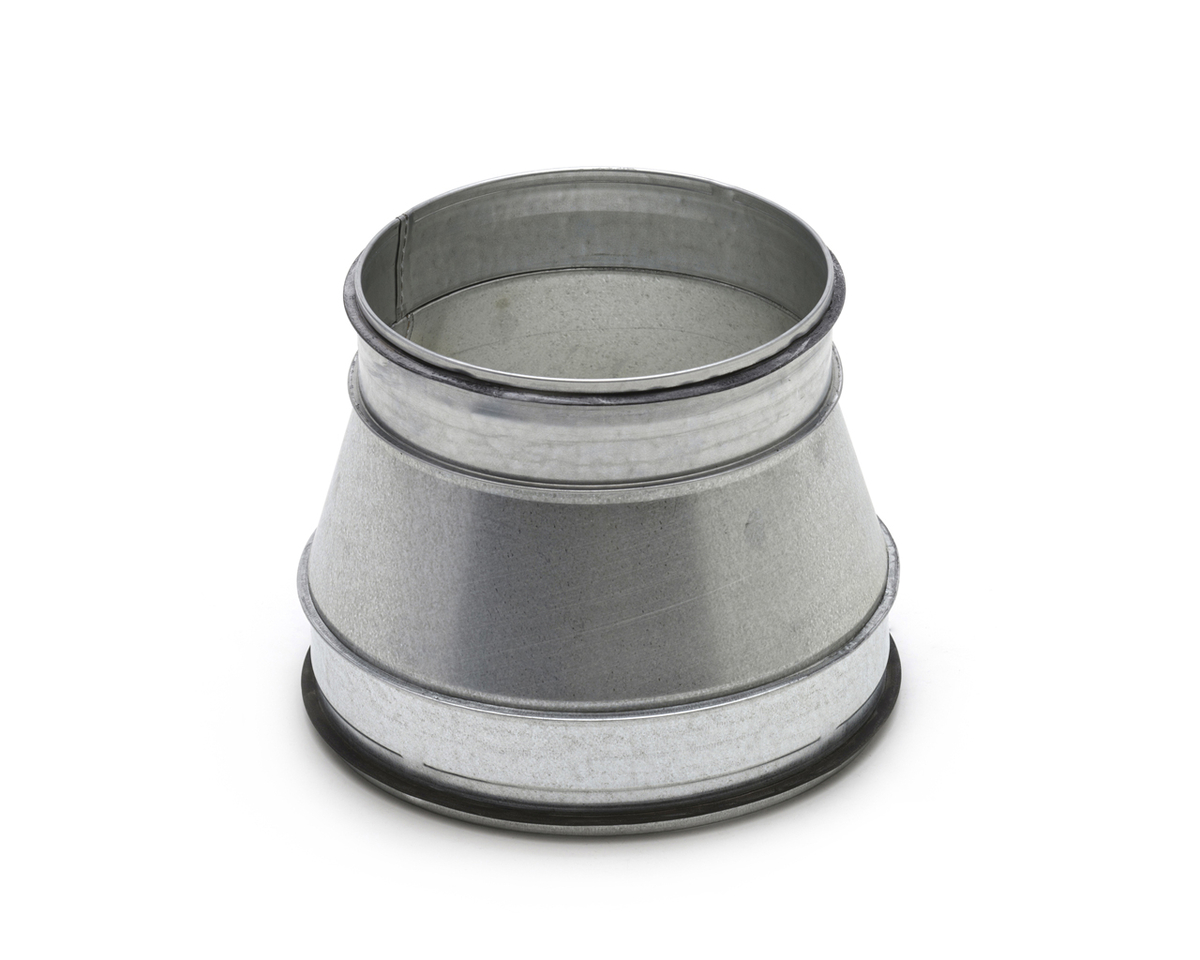

Spiralo Verloop 200-150mm
| Merk |
Spiralo |
| Titel |
Verloop 200-150mm |
| Artikelnummer |
A0370740 |
| Fabrikantnummer |
7735194 |
| EAN code |
08715577030054 |
| Merk | Air Spiralo |
|---|
| Geïsoleerd | nee |
|---|
| Oppervlaktebescherming | Sendzimir verzinkt |
|---|
| Aansluiting 1 | Insteekeind |
|---|
| Aansluiting 2 | Insteekeind |
|---|
| Materiaalkwaliteit | Overig |
|---|
| Materiaal | Sendzimir verzinkt staal |
|---|
| Excentrisch | nee |
|---|
| Hulpstukverloop | nee |
|---|
| Buisverloop | ja |
|---|
| Met voorgemonteerde afdichting | ja |
|---|
| Geperst | nee |
|---|
| Luchtdichtheidsklasse volgens EN 1751 | D |
|---|
| | 100-80mm | 125-100mm | 125-80mm | 150-100mm | 150-125mm | 160-100mm | 160-125mm | 160-150mm | 200-100mm | 200-125mm | 200-150mm | 200-160mm | 200-180mm | 224-125mm | 250-150mm | 250-160mm | 250-200mm | 300-160mm | 300-250mm | 315-200mm | 315-250mm | 315-300mm | 355-200mm | 355-250mm | 355-300mm | 355-315mm |
|---|
| Lengte | 140 mm | 176 mm | 187 mm | 195 mm | 150 mm | 208 mm | 168 mm | 140 mm | 263 mm | 229 mm | 195 mm | 178 mm | 154 mm | 272 mm | 273 mm | 260 mm | 205 mm | 328 mm | 215 mm | 294 mm | 235 mm | 150 mm | 349 mm | 290 mm | 222 mm | 197 mm |
|---|
| Werkende lengte | 44 mm | 80 mm | 91 mm | 99 mm | 54 mm | 112 mm | 72 mm | 44 mm | 167 mm | 133 mm | 99 mm | 82 mm | 58 mm | 166 mm | 167 mm | 154 mm | 99 mm | 222 mm | 99 mm | 188 mm | 119 mm | 34 mm | 243 mm | 174 mm | 106 mm | 81 mm |
|---|
| Lengte aansluiting 1 | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
|---|
| Lengte aansluiting 2 | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 58 mm | 48 mm | 58 mm | 58 mm | 48 mm | 58 mm | 58 mm | 58 mm |
|---|
| Werkende lengte aansluiting 1 | 44 mm | 80 mm | 91 mm | 99 mm | 54 mm | 112 mm | 72 mm | 44 mm | 167 mm | 133 mm | 99 mm | 82 mm | 58 mm | 166 mm | 167 mm | 154 mm | 99 mm | 222 mm | 99 mm | 188 mm | 119 mm | 34 mm | 243 mm | 174 mm | 106 mm | 81 mm |
|---|
| Insteeklengte | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
|---|
| Nom. kanaaldiameter aansluiting 1 | 100 mm | 125 mm | 125 mm | 150 mm | 150 mm | 160 mm | 160 mm | 160 mm | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm | 224 mm | 250 mm | 250 mm | 250 mm | 300 mm | 300 mm | 315 mm | 315 mm | 315 mm | 355 mm | 355 mm | 355 mm | 355 mm |
|---|
| Nom. kanaaldiameter aansluiting 2 | 80 mm | 100 mm | 80 mm | 100 mm | 125 mm | 100 mm | 125 mm | 150 mm | 100 mm | 125 mm | 150 mm | 160 mm | 180 mm | 125 mm | 150 mm | 160 mm | 200 mm | 160 mm | 250 mm | 200 mm | 250 mm | 300 mm | 200 mm | 250 mm | 300 mm | 315 mm |
|---|
