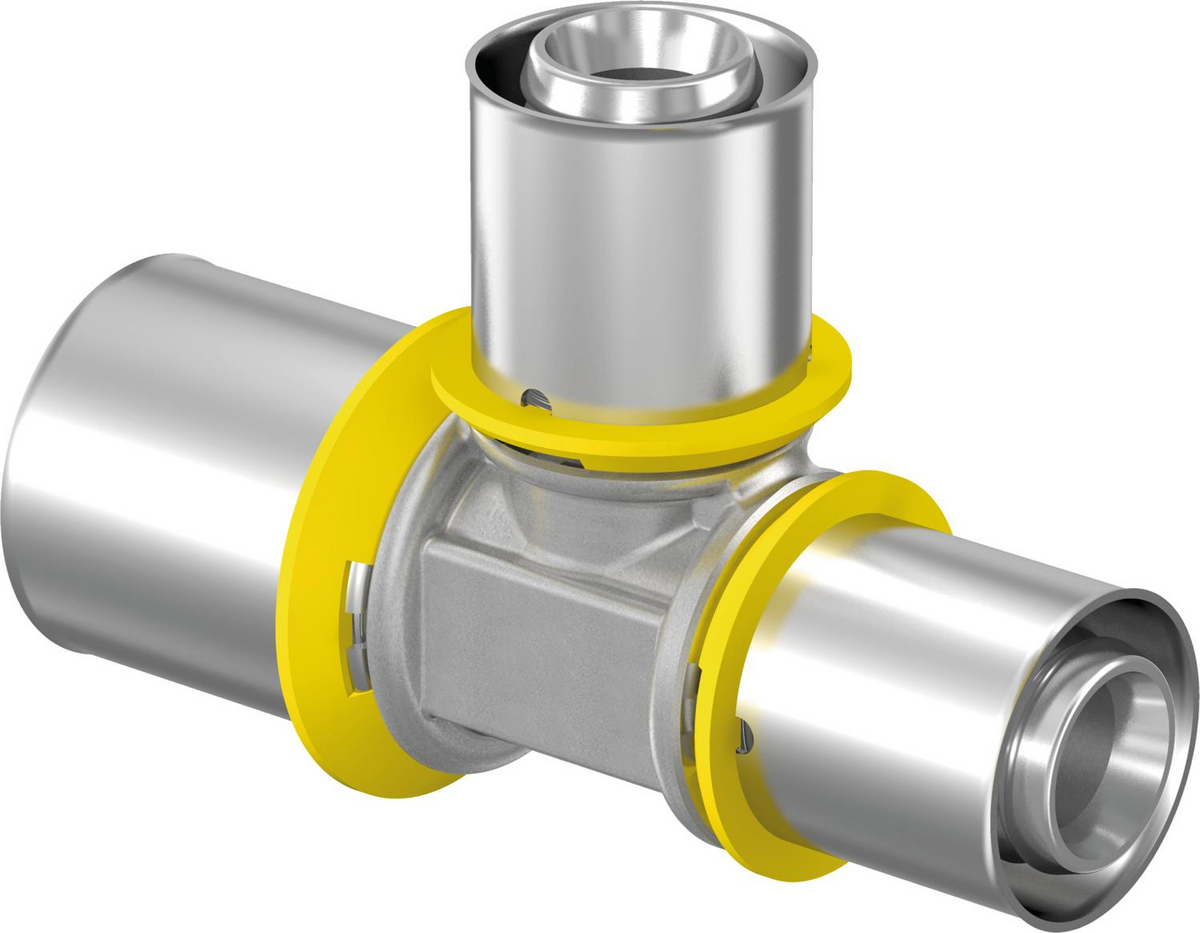

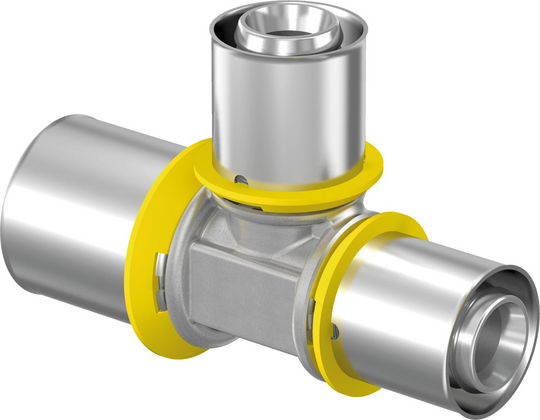

Unicor Gas T-stuk verlopend 32x25x32mm
Merk |
Unicor |
Titel |
Gas T-stuk verlopend 32x25x32mm |
Artikelnummer |
A1083796 |
Fabrikantnummer |
G936156 |
EAN code |
04021598104938 |
| knie 20mm | knie 25mm | knie 32mm | muurplaat 20x1/2" | puntstuk 20x1/2" | puntstuk 20x3/4" | puntstuk 25x3/4" | puntstuk 32x1" | schroefbus 20x1/2" | schroefbus 20x3/4" | schroefbus 25x1" | schroefbus 25x3/4" | schroefbus 32x5/4" | sok 20mm | sok 25mm | sok 32mm | sok verlopend 25x20mm | sok verlopend 32X25MM | T-stuk 20x1/2"x20mm | T-stuk 20x20x20mm | T-stuk 25x25x25mm | T-stuk 32x32x32mm | T-stuk verlopend 25x20x20mm | T-stuk verlopend 25x20x25mm | T-stuk verlopend 32x25x25mm | T-stuk verlopend 32x25x32mm |
---|
Vorm | Knie | Knie | Knie | Haaks | Recht | Recht | Recht | Recht | Recht | Recht | Recht | Recht | Recht | Recht | Recht | Recht | Recht | Recht | | | | | | | | |
---|
Aansluiting 1 | Persmof | Persmof | Persmof | | Persmof | Persmof | Persmof | Persmof | Persmof | Persmof | Persmof | Persmof | Persmof | Persmof | Persmof | Persmof | Persmof | Persmof | Persmof | Persmof | Persmof | Persmof | Persmof | Persmof | Persmof | Persmof |
---|
Aansluiting 2 | Persmof | Persmof | Persmof | | Buitendraad conisch (NPT) | Buitendraad conisch (NPT) | Buitendraad conisch (NPT) | Buitendraad conisch (NPT) | Binnendraad cilindrisch BSPP-G (ISO 228-1) | Binnendraad cilindrisch BSPP-G (ISO 228-1) | Binnendraad cilindrisch BSPP-G (ISO 228-1) | Binnendraad cilindrisch BSPP-G (ISO 228-1) | Binnendraad cilindrisch BSPP-G (ISO 228-1) | Persmof | Persmof | Persmof | Persmof | Persmof | Binnendraad cilindrisch BSPP-G (ISO 228-1) | Persmof | Persmof | Persmof | Persmof | Persmof | Persmof | Persmof |
---|
Bochthoek | 90 ° | 90 ° | 90 ° | | | | | | | | | | | | | | | | | | | | | | | |
---|
Oppervlaktebescherming aansluiting 1 | Vertind | Vertind | Vertind | | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind |
---|
Oppervlaktebescherming aansluiting 2 | Vertind | Vertind | Vertind | | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | | | | | | | | |
---|
Excentrisch | nee | nee | nee | | nee | nee | nee | nee | nee | nee | nee | nee | nee | nee | nee | nee | nee | nee | | | | | | | | |
---|
Uitwendige buisdiameter aansluiting 1 | 20 mm | 25 mm | 32 mm | | 20 mm | 20 mm | 25 mm | 32 mm | 20 mm | 20 mm | 25 mm | 25 mm | 32 mm | 20 mm | 25 mm | 32 mm | 25 mm | 32 mm | 20 mm | 20 mm | 25 mm | 32 mm | 25 mm | 25 mm | 32 mm | 32 mm |
---|
Uitwendige buisdiameter aansluiting 2 | 20 mm | 25 mm | 32 mm | | | | | | | | | | | 20 mm | 25 mm | 32 mm | 20 mm | 25 mm | | 20 mm | 25 mm | 32 mm | 20 mm | 20 mm | 25 mm | 25 mm |
---|
Verlopend | nee | nee | nee | | | | | | | | | | | nee | nee | nee | ja | ja | nee | nee | nee | nee | nee | nee | nee | nee |
---|
Contourcode | U | U | U | | U | U | U | U | U | U | U | U | U | U | U | U | U | U | U | U | U | U | U | U | U | U |
---|
Materiaal aansluiting 1 | Messing | Messing | Messing | | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing |
---|
Materiaal aansluiting 2 | Messing | Messing | Messing | | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing |
---|
Oppervlaktebescherming | | | | Overig | | | | | | | | | | | | | | | | | | | | | | |
---|
Aansluiting | | | | Overig | | | | | | | | | | | | | | | | | | | | | | |
---|
Gastec QA | | | | ja | | | | | | | | | | | | | | | ja | ja | ja | ja | ja | ja | ja | ja |
---|
Uitwendige buisdiameter aansluiting | | | | 20 mm | | | | | | | | | | | | | | | | | | | | | | |
---|
Systeemgebonden | | | | ja | | | | | | | | | | | | | | | ja | ja | ja | ja | ja | ja | ja | ja |
---|
Nom. diameter aansluiting | | | | 1/2" (15) | | | | | | | | | | | | | | | | | | | | | | |
---|
Nom. diameter aansluiting 2 | | | | | 1/2" (15) | 3/4" (20) | 3/4" (20) | 1" (25) | 1/2" (15) | 3/4" (20) | 1" (25) | 3/4" (20) | 1 1/4" (32) | | | | | | 1/2" (15) | | | | | | | |
---|
Uitvoering | | | | | | | | | | | | | | | | | | | T-stuk | T-stuk | T-stuk | T-stuk | T-stuk | T-stuk | T-stuk | T-stuk |
---|
Hoek verstelbaar | | | | | | | | | | | | | | | | | | | nee | nee | nee | nee | nee | nee | nee | nee |
---|
Hoek | | | | | | | | | | | | | | | | | | | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° |
---|
Stromende uitvoering (met binnenradius) | | | | | | | | | | | | | | | | | | | nee | nee | nee | nee | nee | nee | nee | nee |
---|
Materiaal aansluiting 3 | | | | | | | | | | | | | | | | | | | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing |
---|
Kwaliteitsklasse aansluiting 3 | | | | | | | | | | | | | | | | | | | Overig | Overig | Overig | Overig | Overig | Overig | Overig | Overig |
---|
Oppervlaktebescherming aansluiting 3 | | | | | | | | | | | | | | | | | | | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind | Vertind |
---|
Contourcode aansluiting 3 | | | | | | | | | | | | | | | | | | | U | U | U | U | U | U | U | U |
---|
Max. mediumtemperatuur (continu) | | | | | | | | | | | | | | | | | | | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
---|
Afgedopt | | | | | | | | | | | | | | | | | | | nee | nee | nee | nee | nee | nee | nee | nee |
---|
Aansluiting 3 | | | | | | | | | | | | | | | | | | | Persmof | Persmof | Persmof | Persmof | Persmof | Persmof | Persmof | Persmof |
---|
Met aftapper | | | | | | | | | | | | | | | | | | | nee | nee | nee | nee | nee | nee | nee | nee |
---|
Met ontluchter | | | | | | | | | | | | | | | | | | | nee | nee | nee | nee | nee | nee | nee | nee |
---|
Uitwendige buisdiameter aansluiting 3 | | | | | | | | | | | | | | | | | | | 20 mm | 20 mm | 25 mm | 32 mm | 20 mm | 25 mm | 25 mm | 32 mm |
---|
Met stootnok/-rand | | | | | | | | | | | | | | | | | | | ja | ja | ja | ja | ja | ja | ja | ja |
---|
Max. werkdruk bij 20°C | | | | | | | | | | | | | | | | | | | 10 bar | 10 bar | 10 bar | 10 bar | 10 bar | 10 bar | 10 bar | 10 bar |
---|
Kwaliteitsklasse aansluiting 1 | | | | | | | | | | | | | | | | | | | Overig | Overig | Overig | Overig | Overig | Overig | Overig | Overig |
---|
Kwaliteitsklasse aansluiting 2 | | | | | | | | | | | | | | | | | | | Overig | Overig | Overig | Overig | Overig | Overig | Overig | Overig |
---|
Meerdelig | | | | | | | | | | | | | | | | | | | nee | nee | nee | nee | nee | nee | nee | nee |
---|
